[Raspberry Pi Pico] MODBUS EP. 2. Modbus RTU

 本文章介紹使用nanoMODBUS library 在Raspberry Pi Pico上實做MODBUS RTU。以一組MODBUS Master使用LVGL介面，控制兩個Modbus Slaves: 對Slave 1 以write single coil 遙控門的開/關與上鎖/解鎖，以Read Coils 讀取磁簧開關狀態，判斷門的開啟狀態。對Slave 2以write multiple registers 控制WS2812燈條的顏色與點亮LED的個數。

實驗架構如下圖：

MODBUS RTU APU 如下圖所示：

其他Function code 與data內容請參閱以下modbus文件連結：https://modbus.org/docs/Modbus_Application_Protocol_V1_1b3.pdf

成果影片：

程式碼：

本實驗專案使用nanoMODBUS(modbus protocol) library網址如下：

https://github.com/debevv/nanoMODBUS

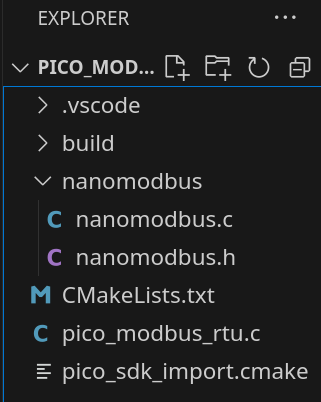

Slave 1:

• CMakeLists.txt

# Generated Cmake Pico project file

cmake_minimum_required(VERSION 3.13)

set(CMAKE_C_STANDARD 11)
set(CMAKE_CXX_STANDARD 17)
set(CMAKE_EXPORT_COMPILE_COMMANDS ON)

# Initialise pico_sdk from installed location
# (note this can come from environment, CMake cache etc)

# == DO NOT EDIT THE FOLLOWING LINES for the Raspberry Pi Pico VS Code Extension to work ==
if(WIN32)
    set(USERHOME $ENV{USERPROFILE})
else()
    set(USERHOME $ENV{HOME})
endif()
set(sdkVersion 2.1.0)
set(toolchainVersion 13_3_Rel1)
set(picotoolVersion 2.1.0)
set(picoVscode ${USERHOME}/.pico-sdk/cmake/pico-vscode.cmake)
if (EXISTS ${picoVscode})
    include(${picoVscode})
endif()
# ====================================================================================
set(PICO_BOARD pico CACHE STRING "Board type")

# Pull in Raspberry Pi Pico SDK (must be before project)
include(pico_sdk_import.cmake)

project(pico_modbus_rtu C CXX ASM)

# Initialise the Raspberry Pi Pico SDK
pico_sdk_init()

# Add executable. Default name is the project name, version 0.1

add_executable(pico_modbus_rtu pico_modbus_rtu.c
                                nanomodbus/nanomodbus.c
                                )

pico_set_program_name(pico_modbus_rtu "pico_modbus_rtu")
pico_set_program_version(pico_modbus_rtu "0.1")

# Modify the below lines to enable/disable output over UART/USB
pico_enable_stdio_uart(pico_modbus_rtu 0)
pico_enable_stdio_usb(pico_modbus_rtu 0)

# Add the standard library to the build
target_link_libraries(pico_modbus_rtu
        pico_stdlib
        hardware_pwm)

# Add the standard include files to the build
target_include_directories(pico_modbus_rtu PRIVATE
  ${CMAKE_CURRENT_LIST_DIR}
)

# Add any user requested libraries
target_link_libraries(pico_modbus_rtu
        hardware_i2c
        )

pico_add_extra_outputs(pico_modbus_rtu)



• pico_modbus_rtu.c

#include <stdio.h>
#include "pico/stdlib.h"
#include "hardware/i2c.h"
#include "hardware/uart.h"
#include "nanomodbus/nanomodbus.h"
#include "hardware/pwm.h"

#define PWM_DOOR_PIN            14
#define PWM_LOCK_PIN            15
#define REED_SWITCH_PIN         16

#define BAUD_RATE               115200
#define DATA_BITS               8
#define STOP_BITS               1
#define PARITY                  UART_PARITY_EVEN

#define DOOR_OPEN_CLOSE_ADDRESS    1
#define DOOR_LOCK_ADDRESS          2
#define REED_SWITCH_ADDRESS        3

#define UART_ID uart1
// Use pins 4 and 5 for UART1
#define UART_TX_PIN             4
#define UART_RX_PIN             5

// The data model of this sever will support coils addresses 0 to 3
#define COILS_ADDR_MAX      4
#define RTU_SERVER_ADDRESS  1

uint pwm_ch_door, pwm_slice_door;
uint pwm_ch_locker, pwm_slice_locker;
int32_t servo_door_ang, servo_locker_ang;

void setServoAngle(int ang, uint pwm_ch, uint slice);


nmbs_t nmbs;
// A single nmbs_bitfield variable can keep 2000 coils
bool terminate = false;
nmbs_bitfield server_coils = {0};

#define UNUSED_PARAM(x) ((x) = (x))

void sighandler(int s) {
    UNUSED_PARAM(s);
    terminate = true;
}

nmbs_error handle_read_coils(uint16_t address, uint16_t quantity, nmbs_bitfield coils_out, uint8_t unit_id, void* arg) {
    UNUSED_PARAM(arg);
    UNUSED_PARAM(unit_id);
    if (address + quantity > COILS_ADDR_MAX + 1)
        return NMBS_EXCEPTION_ILLEGAL_DATA_ADDRESS;

    // Read our coils values into coils_out
    for (int i = 0; i < quantity; i++) {
        bool value = nmbs_bitfield_read(server_coils, address + i);
        nmbs_bitfield_write(coils_out, i, value);
    }

    return NMBS_ERROR_NONE;
}


nmbs_error handle_write_single_coil(uint16_t address, bool value, uint8_t unit_id, void* arg) {
    UNUSED_PARAM(arg);
    UNUSED_PARAM(unit_id);

    //if (address > COILS_ADDR_MAX )
    if (address != DOOR_OPEN_CLOSE_ADDRESS &&  address != DOOR_LOCK_ADDRESS)
        return NMBS_EXCEPTION_ILLEGAL_DATA_ADDRESS;

    // Write coils values to our server_coils

        nmbs_bitfield_write(server_coils, address, value);
     // set servo motor
    if (address == DOOR_OPEN_CLOSE_ADDRESS) {
        setServoAngle(-1*value*90, pwm_ch_door, pwm_slice_door);
    }
    if (address == DOOR_LOCK_ADDRESS) {
        setServoAngle(value*90, pwm_ch_locker, pwm_slice_locker);
    }

    //gpio_put(address+2, value);  // address 0 map to gpio 2
    return NMBS_ERROR_NONE;
}


int32_t nmbs_uart_read(uint8_t* buf, uint16_t count, int32_t byte_timeout_ms, void* arg){
    uint64_t start_time = time_us_64();
    int32_t bytes_read = 0;
    uint64_t timeout_us = (uint64_t) byte_timeout_ms * 1000;
    while (time_us_64() - start_time < timeout_us && bytes_read < count) {
        if (uart_is_readable(UART_ID)) {
            buf[bytes_read++] = uart_getc(UART_ID);
            start_time = time_us_64();    // Reset start time after a successful read
        }
    }

    return bytes_read;
}
int32_t nmbs_uart_write(const uint8_t* buf, uint16_t count, int32_t byte_timeout_ms, void* arg) {
    uart_write_blocking(UART_ID, buf, count);

    return count;
}

//servo motor library
void setServoAngle(int ang, uint pwm_ch, uint slice) {
    uint16_t top_count = (uint16_t)(ang/0.09 + 1500);  // angle 0: 1.5 ms duty
    pwm_set_chan_level(slice, pwm_ch, top_count);
}

void servo_init(uint pin, uint *pwm_ch, uint* slice) {
    // set Servo pwm
    gpio_set_function(pin, GPIO_FUNC_PWM);
    *slice = pwm_gpio_to_slice_num(pin);
    *pwm_ch = pwm_gpio_to_channel(pin);
    pwm_config c = pwm_get_default_config();
    pwm_config_set_clkdiv(&c, 125);  // 20ms period, steps 20000, clkdiv = 125
    pwm_config_set_wrap(&c, 20000);
    pwm_config_set_phase_correct(&c, false);
    pwm_init(*slice, &c, true);
}

void reed_switch_sensor_callback(uint gpio, uint32_t events) {
    if (gpio == REED_SWITCH_PIN) {
        if (events == GPIO_IRQ_EDGE_RISE) {
            nmbs_bitfield_write(server_coils, REED_SWITCH_ADDRESS, 1);
        }
        if (events == GPIO_IRQ_EDGE_FALL) {
            nmbs_bitfield_write(server_coils, REED_SWITCH_ADDRESS, 0);
        }
    }
}

int main()
{
    stdio_init_all();

    gpio_set_irq_enabled_with_callback(REED_SWITCH_PIN, GPIO_IRQ_EDGE_RISE | GPIO_IRQ_EDGE_FALL,
            true, &reed_switch_sensor_callback);

    //servo motor init
    servo_locker_ang = 0;
    servo_door_ang = 0;
    servo_init(PWM_DOOR_PIN, &pwm_ch_door, &pwm_slice_door);
    servo_init(PWM_LOCK_PIN, &pwm_ch_locker, &pwm_slice_locker);

    setServoAngle(servo_door_ang, pwm_ch_door, pwm_slice_door);
    setServoAngle(servo_locker_ang, pwm_ch_locker, pwm_slice_locker);


    // Set up our UART
    uart_init(UART_ID, BAUD_RATE);
    gpio_set_function(UART_TX_PIN, GPIO_FUNC_UART);
    gpio_set_function(UART_RX_PIN, GPIO_FUNC_UART);
    int __unused actual = uart_set_baudrate(UART_ID, BAUD_RATE);
    uart_set_hw_flow(UART_ID, false, false);
    uart_set_format(UART_ID, DATA_BITS, STOP_BITS, PARITY);
    uart_set_fifo_enabled(UART_ID, false);


    // nmbs_uart_read() and nmbs_uart_write() are implemented by the user
    nmbs_platform_conf platform_conf;
    nmbs_platform_conf_create(&platform_conf);
    platform_conf.transport = NMBS_TRANSPORT_RTU;
    platform_conf.read = nmbs_uart_read;
    platform_conf.write = nmbs_uart_write;

    nmbs_callbacks callbacks;
    nmbs_callbacks_create(&callbacks);
    callbacks.read_coils = handle_read_coils;
    callbacks.write_single_coil = handle_write_single_coil;

    nmbs_error err = nmbs_server_create(&nmbs, RTU_SERVER_ADDRESS, &platform_conf, &callbacks);
    if (err != NMBS_ERROR_NONE) {
        fprintf(stderr, "Error creating modbus server\n");
        return 1;
    }

    // Set only the polling timeout. Byte timeout will be handled by the TCP connection
    nmbs_set_read_timeout(&nmbs, 1000);

    while (true) {

        nmbs_server_poll(&nmbs);

        tight_loop_contents();
    }
}


Slave 2:

• CMakeLists.txt(main)

# == DO NOT EDIT THE FOLLOWING LINES for the Raspberry Pi Pico VS Code Extension to work ==
if(WIN32)
    set(USERHOME $ENV{USERPROFILE})
else()
    set(USERHOME $ENV{HOME})
endif()
set(sdkVersion 2.1.0)
set(toolchainVersion 13_3_Rel1)
set(picotoolVersion 2.1.0)
set(picoVscode ${USERHOME}/.pico-sdk/cmake/pico-vscode.cmake)
if (EXISTS ${picoVscode})
    include(${picoVscode})
endif()
# ====================================================================================
# == DO NOT EDIT THE FOLLOWING LINES for the Raspberry Pi Pico VS Code Extension to work ==
if(WIN32)
    set(USERHOME $ENV{USERPROFILE})
else()
    set(USERHOME $ENV{HOME})
endif()
set(sdkVersion 2.1.0)
set(toolchainVersion 13_3_Rel1)
set(picotoolVersion 2.1.0)
set(picoVscode ${USERHOME}/.pico-sdk/cmake/pico-vscode.cmake)
if (EXISTS ${picoVscode})
    include(${picoVscode})
endif()
# ====================================================================================
# Generated Cmake Pico project file

cmake_minimum_required(VERSION 3.13)

set(CMAKE_C_STANDARD 11)
set(CMAKE_CXX_STANDARD 17)
set(CMAKE_EXPORT_COMPILE_COMMANDS ON)

# Initialise pico_sdk from installed location
# (note this can come from environment, CMake cache etc)

# == DO NOT EDIT THE FOLLOWING LINES for the Raspberry Pi Pico VS Code Extension to work ==
if(WIN32)
    set(USERHOME $ENV{USERPROFILE})
else()
    set(USERHOME $ENV{HOME})
endif()
set(sdkVersion 2.1.0)
set(toolchainVersion 13_3_Rel1)
set(picotoolVersion 2.1.0)
set(picoVscode ${USERHOME}/.pico-sdk/cmake/pico-vscode.cmake)
if (EXISTS ${picoVscode})
    include(${picoVscode})
endif()
# ====================================================================================
set(PICO_BOARD pico CACHE STRING "Board type")

# Pull in Raspberry Pi Pico SDK (must be before project)
include(pico_sdk_import.cmake)

project(pico_modbus_rtu_slave2 C CXX ASM)

# Initialise the Raspberry Pi Pico SDK
pico_sdk_init()

# Add executable. Default name is the project name, version 0.1

add_executable(pico_modbus_rtu_slave2 pico_modbus_rtu_slave2.c
                                nanomodbus/nanomodbus.c
                                )

pico_set_program_name(pico_modbus_rtu_slave2 "pico_modbus_rtu_slave2")
pico_set_program_version(pico_modbus_rtu_slave2 "0.1")

# Modify the below lines to enable/disable output over UART/USB
pico_enable_stdio_uart(pico_modbus_rtu_slave2 0)
pico_enable_stdio_usb(pico_modbus_rtu_slave2 1)

# Add the standard library to the build
target_link_libraries(pico_modbus_rtu_slave2
        pico_stdlib
        )

# Add the standard include files to the build
target_include_directories(pico_modbus_rtu_slave2 PRIVATE
  ${CMAKE_CURRENT_LIST_DIR}
)

# Add any user requested libraries
target_link_libraries(pico_modbus_rtu_slave2
        hardware_i2c
        )
add_subdirectory (ws2812)
target_link_libraries(pico_modbus_rtu_slave2
        ws2812
        )
pico_add_extra_outputs(pico_modbus_rtu_slave2)



• pico_modbus_rtu_slave2.c

#include <stdio.h>
#include "pico/stdlib.h"
#include "hardware/i2c.h"
#include "hardware/uart.h"
#include "nanomodbus/nanomodbus.h"
#include "hardware/pio.h"
#include "ws2812.h"

#define UART_ID uart1
#define UART_TX_PIN 4
#define UART_RX_PIN 5

#define BAUD_RATE 115200
#define DATA_BITS 8
#define STOP_BITS 1
#define PARITY    UART_PARITY_EVEN

// The data model of this sever will support registers addresses from 0 to 1
#define REGS_ADDR_MAX 2  // register 0 for color, register 1 for the number of leds

#define RTU_SERVER_ADDRESS 2

#define WS2812_PIO          pio0  //WS2812 LED PIO parameters
#define WS2812_SM           0
#define WS2812_PIN          16
#define TOTAL_LEDS_NUM      10

nmbs_t nmbs;
bool terminate = false;
uint16_t server_registers[REGS_ADDR_MAX] = {0};


#define UNUSED_PARAM(x) ((x) = (x))

void sighandler(int s) {
    UNUSED_PARAM(s);
    terminate = true;
}

nmbs_error handler_read_holding_registers(uint16_t address, uint16_t quantity, uint16_t* registers_out, uint8_t unit_id,
                                          void* arg) {
    UNUSED_PARAM(arg);
    UNUSED_PARAM(unit_id);

    if (address + quantity > REGS_ADDR_MAX + 1)
        return NMBS_EXCEPTION_ILLEGAL_DATA_ADDRESS;


    return NMBS_ERROR_NONE;
}

nmbs_error handle_write_multiple_registers(uint16_t address, uint16_t quantity, const uint16_t* registers,
                                           uint8_t unit_id, void* arg) {
    UNUSED_PARAM(arg);
    UNUSED_PARAM(unit_id);

    if (address + quantity > REGS_ADDR_MAX + 1)
        return NMBS_EXCEPTION_ILLEGAL_DATA_ADDRESS;

    // Write registers values to our server_registers
    for (int i = 0; i < quantity; i++)
        server_registers[address + i] = registers[i];

    // ========== ws2812, color, led nums
    int pixels;
    uint16_t le_color = server_registers[0] >> 8 | (server_registers[0] & 0x00ff) <<8;
    uint32_t color = urgb_u32(le_color >> 11, (le_color&0x3e0) >> 5,le_color & 0x1f);
    for (pixels =0; pixels < server_registers[1] && pixels < TOTAL_LEDS_NUM; pixels++) {
        ws2812_put_grb_pixel(WS2812_PIO, WS2812_SM,  color);
    }
    for (int i = pixels; i < TOTAL_LEDS_NUM; i++) {
        ws2812_put_grb_pixel(WS2812_PIO, WS2812_SM,  0);
    }

    return NMBS_ERROR_NONE;
}

int32_t nmbs_uart_read(uint8_t* buf, uint16_t count, int32_t byte_timeout_ms, void* arg){
    uint64_t start_time = time_us_64();
    int32_t bytes_read = 0;
    uint64_t timeout_us = (uint64_t) byte_timeout_ms * 1000;
    while (time_us_64() - start_time < timeout_us && bytes_read < count) {
        if (uart_is_readable(UART_ID)) {
            buf[bytes_read++] = uart_getc(UART_ID);
            start_time = time_us_64();    // Reset start time after a successful read
        }
    }

    return bytes_read;
}
int32_t nmbs_uart_write(const uint8_t* buf, uint16_t count, int32_t byte_timeout_ms, void* arg) {
    uart_write_blocking(UART_ID, buf, count);

    return count;
}


int main()
{
    stdio_init_all();

    ws2812_init(WS2812_PIO, WS2812_SM, WS2812_PIN);

    // Set up our UART
    uart_init(UART_ID, BAUD_RATE);
    gpio_set_function(UART_TX_PIN, GPIO_FUNC_UART);
    gpio_set_function(UART_RX_PIN, GPIO_FUNC_UART);
    int __unused actual = uart_set_baudrate(UART_ID, BAUD_RATE);
    uart_set_hw_flow(UART_ID, false, false);
    uart_set_format(UART_ID, DATA_BITS, STOP_BITS, PARITY);
    uart_set_fifo_enabled(UART_ID, false);

    // nmbs_uart_read() and nmbs_uart_write() are implemented by the user
    nmbs_platform_conf platform_conf;
    nmbs_platform_conf_create(&platform_conf);
    platform_conf.transport = NMBS_TRANSPORT_RTU;
    platform_conf.read = nmbs_uart_read;
    platform_conf.write = nmbs_uart_write;

    nmbs_callbacks callbacks;
    nmbs_callbacks_create(&callbacks);

    callbacks.read_holding_registers = handler_read_holding_registers;
    callbacks.write_multiple_registers = handle_write_multiple_registers;

    nmbs_error err = nmbs_server_create(&nmbs, RTU_SERVER_ADDRESS, &platform_conf, &callbacks);
    if (err != NMBS_ERROR_NONE) {
        fprintf(stderr, "Error creating modbus server\n");
        return 1;
    }

    // Set only the polling timeout. Byte timeout will be handled by the TCP connection
    nmbs_set_read_timeout(&nmbs, 1000);

    while (true) {
        nmbs_server_poll(&nmbs);

        tight_loop_contents();
    }
}


WS2812 Library:

• CMakeLists.txt

add_library(ws2812 INTERFACE)
pico_generate_pio_header(ws2812 ${CMAKE_CURRENT_LIST_DIR}/ws2812.pio)
target_sources(ws2812 INTERFACE
    ${CMAKE_CURRENT_LIST_DIR}/ws2812.c
)

target_include_directories(ws2812 INTERFACE
    ${CMAKE_CURRENT_LIST_DIR}
)

target_link_libraries(ws2812 INTERFACE
        hardware_pio
)


• ws2812.c

#include "ws2812.h"

#include "stdlib.h"
#include "string.h"


#define green 0x1f0000
#define red 0x001f00
#define blue 0x00001f

static void ws2812_program_init(PIO pio, uint sm, uint pin, float freq) {

    uint offset = pio_add_program(pio, &ws2812_program);
    pio_sm_config c = ws2812_program_get_default_config(offset);

    pio_gpio_init(pio, pin);
    pio_sm_set_consecutive_pindirs(pio, sm, pin, 1, true);

    sm_config_set_sideset_pins(&c, pin);
    sm_config_set_out_shift(&c, false, true, 24);
    sm_config_set_fifo_join(&c, PIO_FIFO_JOIN_TX);

    int cycles_per_bit = 6;
    float div = clock_get_hz(clk_sys) / (freq * cycles_per_bit);
    sm_config_set_clkdiv(&c, div);

    pio_sm_init(pio, sm, offset, &c);
    pio_sm_set_enabled(pio, sm, true);
}

void ws2812_put_grb_pixel(PIO pio, uint sm, uint32_t pixel_grb) {
    pio_sm_put_blocking(pio, sm, pixel_grb << 8u);
}

uint32_t urgb_u32(uint8_t r, uint8_t g, uint8_t b) {
    return
            ((uint32_t) (r) << 8) |
            ((uint32_t) (g) << 16) |
            (uint32_t) (b);
}

void ws2812_init(PIO pio, uint sm, uint ws2812_pin) {

    ws2812_program_init(pio, sm,  ws2812_pin, 800000);
}




• ws1812.h


#ifndef _WS2812_H_
#define _WS2812_H_
#include <stdio.h>
#include "pico/stdlib.h"
#include "hardware/pio.h"
#include "ws2812.pio.h"
#include "hardware/clocks.h"



void ws2812_init(PIO pio, uint sm, uint ws2812_pin);
void ws2812_put_grb_pixel(PIO pio, uint sm, uint32_t pixel_grb);
uint32_t urgb_u32(uint8_t r, uint8_t g, uint8_t b);

#endif

• ws2812.pio

.program ws2812
.side_set 1

.wrap_target
bitloop:
    out x, 1       side 0 [1]
    jmp !x do_zero side 1 [1]
do_one:
    jmp  bitloop   side 1 [1]
do_zero:
    nop            side 0 [1]
.wrap



modbus master:

pico_lvgl library 請參閱以前文章：

[Raspberry Pi Pico (c-sdk)] LVGL  Graphics Library  &  Pico PIO TFT display driver(Serial or Parallel)

• CMakeLists.txt:

# == DO NOT EDIT THE FOLLOWING LINES for the Raspberry Pi Pico VS Code Extension to work ==
if(WIN32)
    set(USERHOME $ENV{USERPROFILE})
else()
    set(USERHOME $ENV{HOME})
endif()
set(sdkVersion 2.1.0)
set(toolchainVersion 13_3_Rel1)
set(picotoolVersion 2.1.0)
set(picoVscode ${USERHOME}/.pico-sdk/cmake/pico-vscode.cmake)
if (EXISTS ${picoVscode})
    include(${picoVscode})
endif()
# ====================================================================================
# == DO NOT EDIT THE FOLLOWING LINES for the Raspberry Pi Pico VS Code Extension to work ==
if(WIN32)
    set(USERHOME $ENV{USERPROFILE})
else()
    set(USERHOME $ENV{HOME})
endif()
set(sdkVersion 2.1.0)
set(toolchainVersion 13_3_Rel1)
set(picotoolVersion 2.1.0)
set(picoVscode ${USERHOME}/.pico-sdk/cmake/pico-vscode.cmake)
if (EXISTS ${picoVscode})
    include(${picoVscode})
endif()
# ====================================================================================
# Generated Cmake Pico project file

cmake_minimum_required(VERSION 3.13)

set(CMAKE_C_STANDARD 11)
set(CMAKE_CXX_STANDARD 17)
set(CMAKE_EXPORT_COMPILE_COMMANDS ON)

# Initialise pico_sdk from installed location
# (note this can come from environment, CMake cache etc)

# == DO NOT EDIT THE FOLLOWING LINES for the Raspberry Pi Pico VS Code Extension to work ==
if(WIN32)
    set(USERHOME $ENV{USERPROFILE})
else()
    set(USERHOME $ENV{HOME})
endif()
set(sdkVersion 2.1.0)
set(toolchainVersion 13_3_Rel1)
set(picotoolVersion 2.1.0)
set(picoVscode ${USERHOME}/.pico-sdk/cmake/pico-vscode.cmake)
if (EXISTS ${picoVscode})
    include(${picoVscode})
endif()
# ====================================================================================
set(PICO_BOARD pico CACHE STRING "Board type")

# Pull in Raspberry Pi Pico SDK (must be before project)
include(pico_sdk_import.cmake)

project(pico_modbus_rtu_master C CXX ASM)

# Initialise the Raspberry Pi Pico SDK
pico_sdk_init()

# Add executable. Default name is the project name, version 0.1

add_executable(pico_modbus_rtu_master pico_modbus_rtu_master.c
                                nanomodbus/nanomodbus.c
                                modbus_master_ui.c
                                )

pico_set_program_name(pico_modbus_rtu_master "pico_modbus_rtu")
pico_set_program_version(pico_modbus_rtu_master "0.1")

# Modify the below lines to enable/disable output over UART/USB
pico_enable_stdio_uart(pico_modbus_rtu_master 0)
pico_enable_stdio_usb(pico_modbus_rtu_master 0)

# Add the standard library to the build
target_link_libraries(pico_modbus_rtu_master
        pico_stdlib
       )

# Add the standard include files to the build
target_include_directories(pico_modbus_rtu_master PRIVATE
  ${CMAKE_CURRENT_LIST_DIR}
)

# Add any user requested libraries
target_link_libraries(pico_modbus_rtu_master
        hardware_i2c
        hardware_pio
        )
add_subdirectory(pico_lvgl)
target_link_libraries(pico_modbus_rtu_master
        pico_lvgl
)

pico_add_extra_outputs(pico_modbus_rtu_master)



• modbus_master_ui.c

#include "stdio.h"
#include "pico/stdlib.h"
#include "lvgl/lvgl.h"
#include "pico_modbus_rtu_master.h"
#include "nanomodbus/nanomodbus.h"
#include "images/door_open.h"
#include "images/door_close.h"
#include "images/lock.h"
#include "images/unlock.h"
#include "images/open.h"
#include "images/close.h"

#define TOTAL_LED_NUM   10

extern nmbs_t nmbs;
LV_IMG_DECLARE(door_open);
LV_IMG_DECLARE(door_close);
LV_IMG_DECLARE(door_lock);
LV_IMG_DECLARE(door_unlock);
LV_IMG_DECLARE(open);
LV_IMG_DECLARE(close);

lv_obj_t *door, *lock_obj;
lv_obj_t* slider_label;

lv_color_t led_color;
int32_t led_num;

static void slider_event_cb(lv_event_t *e) {
    lv_obj_t *obj = lv_event_get_target(e);
    lv_event_code_t code = lv_event_get_code(e);
    uint16_t registers[2];

    if (code == LV_EVENT_VALUE_CHANGED) {
        led_num = lv_slider_get_value(obj)/TOTAL_LED_NUM;
        lv_label_set_text_fmt(slider_label, "%d", led_num);
        // send to modbus server
        registers[0] = led_color.full;
        registers[1] = led_num;
        nmbs_set_destination_rtu_address(&nmbs, RTU_WS2812_SERVER_ADDRESS);
        nmbs_error err = nmbs_write_multiple_registers(&nmbs, 0, 2, registers);
    }
}

static void color_picker_cb(lv_event_t *e) {
    lv_obj_t *color_picker = lv_event_get_target(e);
    lv_event_code_t code = lv_event_get_code(e);
    if (code == LV_EVENT_VALUE_CHANGED) {
        uint16_t registers[2];
        led_color = lv_colorwheel_get_rgb(color_picker);
        // send to modbus server
        registers[0] = led_color.full;
        registers[1] = led_num;
        nmbs_set_destination_rtu_address(&nmbs, RTU_WS2812_SERVER_ADDRESS);
        nmbs_error err = nmbs_write_multiple_registers(&nmbs, 0, 2, registers);
    }
}

static void btn_lock_event_handler(lv_event_t * e)
{
    lv_event_code_t code = lv_event_get_code(e);
    lv_obj_t * obj = lv_event_get_target(e);
    lv_obj_t *label = lv_obj_get_child(obj, 0);
    lv_obj_t* img = lv_obj_get_child(obj, 1);
    uint8_t address;
    nmbs_bitfield coils;
   int i;
    if(code == LV_EVENT_CLICKED) {
        nmbs_set_destination_rtu_address(&nmbs, RTU_DOOR_SERVER_ADDRESS);
        nmbs_error err = nmbs_read_coils(&nmbs, 0, 4, coils);
        if (nmbs_bitfield_read(coils,DOOR_LOCK_ADDRESS) == 1) {
            err = nmbs_write_single_coil(&nmbs, DOOR_LOCK_ADDRESS, 0);
            lv_label_set_text(label, "Lock");
            lv_img_set_src(img, &lock);
        } else {
            err = nmbs_write_single_coil(&nmbs, DOOR_LOCK_ADDRESS, 1);
            lv_label_set_text(label, "Unlock");
            lv_img_set_src(img, &unlock);
        }
           //lv_timer_handler();
    }
}

static void btn_door_event_handler(lv_event_t * e)
{
    lv_event_code_t code = lv_event_get_code(e);
    lv_obj_t * obj = lv_event_get_target(e);
    lv_obj_t *label = lv_obj_get_child(obj, 0);
    lv_obj_t *img = lv_obj_get_child(obj, 1);
    uint8_t address;
    nmbs_bitfield coils;
   int i;
    if(code == LV_EVENT_CLICKED) {
        nmbs_set_destination_rtu_address(&nmbs, RTU_DOOR_SERVER_ADDRESS);
        nmbs_error err = nmbs_read_coils(&nmbs, 0, 4, coils);
        if (nmbs_bitfield_read(coils,REED_SWITCH_ADDRESS) == 1) {
            err = nmbs_write_single_coil(&nmbs, DOOR_OPEN_CLOSE_ADDRESS, 0);
            lv_img_set_src(door, &door_close);
            lv_label_set_text(label, "Open");
            lv_img_set_src(img, &open);
        } else {
            err = nmbs_write_single_coil(&nmbs, DOOR_OPEN_CLOSE_ADDRESS, 1);
            lv_img_set_src(door, &door_open);
            lv_label_set_text(label, "Close");
            lv_img_set_src(img, &close);
        }
        //lv_timer_handler();
    }
}

void draw_master_ui() {

    lv_obj_t*  label = lv_label_create(lv_scr_act());
    lv_label_set_text_fmt(label, "Slave\nAddr %d", RTU_DOOR_SERVER_ADDRESS);
    lv_obj_align(label, LV_ALIGN_TOP_LEFT, 5,5);

    lv_obj_t* btn = lv_btn_create(lv_scr_act());
    lv_obj_align(btn, LV_ALIGN_TOP_MID, 70, 20);
    label = lv_label_create(btn);
    lv_obj_t *img = lv_img_create(btn);
    lv_label_set_text(label, "Open");
    lv_img_set_src(img, &open);
    lv_obj_align(img, LV_ALIGN_LEFT_MID, 0,0);
    lv_obj_align_to(label, img, LV_ALIGN_OUT_RIGHT_MID, 5, 0);
    lv_obj_set_size(btn, 120, 60);
    lv_obj_set_style_bg_color(btn, lv_color_hex(0x00cf00), 0);
    lv_obj_add_event_cb(btn, btn_door_event_handler, LV_EVENT_ALL, NULL);


    btn = lv_btn_create(lv_scr_act());
    lv_obj_align(btn, LV_ALIGN_TOP_MID, 70, 90);
    label = lv_label_create(btn);
    img = lv_img_create(btn);
    lv_label_set_text(label, "Lock");
    lv_img_set_src(img, &lock);
    lv_obj_align(img, LV_ALIGN_LEFT_MID, 0,0);
    lv_obj_align_to(label, img, LV_ALIGN_OUT_RIGHT_MID, 5, 0);
    lv_obj_set_size(btn, 120, 60);
    lv_obj_set_style_bg_color(btn, lv_color_hex(0x00cf00), 0);
    lv_obj_add_event_cb(btn, btn_lock_event_handler, LV_EVENT_ALL, NULL);

    door = lv_img_create(lv_scr_act());
    lv_img_set_src(door, &door_close);
    lv_obj_align(door, LV_ALIGN_TOP_MID, -90, 10);
    lv_obj_set_size(door, 160, 160);

// ============== line
    static lv_point_t line_points[] = { {5, 0}, {470,0} };
    /*Create style*/
    static lv_style_t style_line;
    lv_style_init(&style_line);
    lv_style_set_line_width(&style_line, 8);
    lv_style_set_line_color(&style_line, lv_palette_main(LV_PALETTE_BLUE));
    lv_style_set_line_rounded(&style_line, true);
    lv_style_set_shadow_width(&style_line,1);

    /*Create a line and apply the new style*/
    lv_obj_t * line1;
    line1 = lv_line_create(lv_scr_act());
    lv_line_set_points(line1, line_points, 2);     /*Set the points*/
    lv_obj_add_style(line1, &style_line, 0);
    lv_obj_align(line1, LV_ALIGN_TOP_LEFT, 0, 170);
    // ===========
    label = lv_label_create(lv_scr_act());
    lv_label_set_text_fmt(label, "Slave\nAddr %d", RTU_WS2812_SERVER_ADDRESS);
    lv_obj_align_to(label, line1, LV_ALIGN_OUT_BOTTOM_LEFT, 5,5);

    lv_obj_t *color_wheel = lv_colorwheel_create(lv_scr_act(), true);
    lv_obj_set_size(color_wheel, 120, 120);
    lv_obj_align(color_wheel, LV_ALIGN_BOTTOM_MID, -90, -20);
    led_color = lv_color_make(0xff, 0,0);
    lv_colorwheel_set_rgb(color_wheel, led_color);
    //lv_colorwheel_set_mode(color_wheel, LV_COLORWHEEL_MODE_VALUE);
    lv_colorwheel_set_mode_fixed(color_wheel, true);
    lv_obj_add_event_cb(color_wheel, color_picker_cb, LV_EVENT_VALUE_CHANGED, NULL);

    lv_obj_t * slider = lv_slider_create(lv_scr_act());
    lv_obj_align(slider, LV_ALIGN_BOTTOM_MID, 100, -60);
    lv_obj_set_size(slider, 180, 20);
    lv_obj_add_event_cb(slider, slider_event_cb, LV_EVENT_VALUE_CHANGED, NULL);

    /*Create a label below the slider*/
    slider_label = lv_label_create(lv_scr_act());
    lv_label_set_text(slider_label, "0");
    lv_obj_align_to(slider_label, slider, LV_ALIGN_OUT_BOTTOM_MID, 0, 10);




}

• pico_modbus_rtu_master.c

#include <stdio.h>
#include "pico/stdlib.h"
#include "hardware/i2c.h"
#include "hardware/uart.h"
#include "nanomodbus/nanomodbus.h"
#include "hardware/pio.h"
#include "pico_lvgl.h"
#include "pico_modbus_rtu_master.h"

nmbs_t nmbs;
bool terminate = false;
nmbs_bitfield server_coils = {0};
uint16_t server_registers[REGS_ADDR_MAX] = {0};

PIO TFT_PIO = pio1;
#define TFT_SM 1
#define TFT_SDI_GPIO 9
#define TFT_CSX_DCX_SCK_GPIO 6 // CSX=8, DCX=7, SCK=6, SIDE_SET

#define UNUSED_PARAM(x) ((x) = (x))

void draw_master_ui();

void sighandler(int s) {
    UNUSED_PARAM(s);
    terminate = true;
}

nmbs_error handle_read_coils(uint16_t address, uint16_t quantity, nmbs_bitfield coils_out, uint8_t unit_id, void* arg) {
    UNUSED_PARAM(arg);
    UNUSED_PARAM(unit_id);
    if (address + quantity > COILS_ADDR_MAX + 1)
        return NMBS_EXCEPTION_ILLEGAL_DATA_ADDRESS;

    // Read our coils values into coils_out
    for (int i = 0; i < quantity; i++) {
        bool value = nmbs_bitfield_read(server_coils, address + i);
        nmbs_bitfield_write(coils_out, i, value);
    }

    return NMBS_ERROR_NONE;
}

nmbs_error handle_read_discrete_inputs(uint16_t address, uint16_t quantity, nmbs_bitfield coils_out, uint8_t unit_id, void* arg) {
    UNUSED_PARAM(arg);
    UNUSED_PARAM(unit_id);

    if (address + quantity > COILS_ADDR_MAX + 1)
        return NMBS_EXCEPTION_ILLEGAL_DATA_ADDRESS;

    // Read our coils values into coils_out
    for (int i = 0; i < quantity; i++) {
        bool value = nmbs_bitfield_read(server_coils, address + i);
        nmbs_bitfield_write(coils_out, i, value);
    }

    return NMBS_ERROR_NONE;
}

nmbs_error handle_write_single_coil(uint16_t address, bool value, uint8_t unit_id, void* arg) {
    UNUSED_PARAM(arg);
    UNUSED_PARAM(unit_id);

    if (address != DOOR_OPEN_CLOSE_ADDRESS &&  address != DOOR_OPEN_CLOSE_ADDRESS)
        return NMBS_EXCEPTION_ILLEGAL_DATA_ADDRESS;

    // Write coils values to our server_coils

        nmbs_bitfield_write(server_coils, address, value);

    return NMBS_ERROR_NONE;
}

nmbs_error handle_write_multiple_coils(uint16_t address, uint16_t quantity, const nmbs_bitfield coils, uint8_t unit_id,
                                       void* arg) {
    UNUSED_PARAM(arg);
    UNUSED_PARAM(unit_id);

    if (address + quantity > COILS_ADDR_MAX + 1)
        return NMBS_EXCEPTION_ILLEGAL_DATA_ADDRESS;

    // Write coils values to our server_coils
    for (int i = 0; i < quantity; i++) {
        nmbs_bitfield_write(server_coils, address + i, nmbs_bitfield_read(coils, i));
    }

    return NMBS_ERROR_NONE;
}


nmbs_error handler_read_holding_registers(uint16_t address, uint16_t quantity, uint16_t* registers_out, uint8_t unit_id,
                                          void* arg) {
    UNUSED_PARAM(arg);
    UNUSED_PARAM(unit_id);

    if (address + quantity > REGS_ADDR_MAX + 1)
        return NMBS_EXCEPTION_ILLEGAL_DATA_ADDRESS;

    return NMBS_ERROR_NONE;
}

nmbs_error handle_write_single_register(uint16_t address, uint16_t value, uint8_t unit_id, void* arg) {
    UNUSED_PARAM(arg);
    UNUSED_PARAM(unit_id);

    if (address > REGS_ADDR_MAX)
        return NMBS_EXCEPTION_ILLEGAL_DATA_ADDRESS;

    // Write registers values to our server_registers

    return NMBS_ERROR_NONE;
}

nmbs_error handle_write_multiple_registers(uint16_t address, uint16_t quantity, const uint16_t* registers,
                                           uint8_t unit_id, void* arg) {
    UNUSED_PARAM(arg);
    UNUSED_PARAM(unit_id);

    if (address + quantity > REGS_ADDR_MAX + 1)
        return NMBS_EXCEPTION_ILLEGAL_DATA_ADDRESS;

    // Write registers values to our server_registers
    for (int i = 0; i < quantity; i++)
        server_registers[address + i] = registers[i];

    return NMBS_ERROR_NONE;
}

int32_t nmbs_uart_read(uint8_t* buf, uint16_t count, int32_t byte_timeout_ms, void* arg){
    uint64_t start_time = time_us_64();
    int32_t bytes_read = 0;
    uint64_t timeout_us = (uint64_t) byte_timeout_ms * 1000;
    while (time_us_64() - start_time < timeout_us && bytes_read < count) {
        if (uart_is_readable(UART_ID)) {
            buf[bytes_read++] = uart_getc(UART_ID);
            start_time = time_us_64();    // Reset start time after a successful read
        }
    }

    return bytes_read;
}
int32_t nmbs_uart_write(const uint8_t* buf, uint16_t count, int32_t byte_timeout_ms, void* arg) {
    uart_write_blocking(UART_ID, buf, count);

    return count;
}

nmbs_error err;
int main()
{
    stdio_init_all();

    pico_lvgl_tft_init(TFT_PIO, TFT_SM, TFT_SDI_GPIO, TFT_CSX_DCX_SCK_GPIO);
    tft_set_orientation(TFT_ORIENTATION_LANDSCAPE);

    pico_lvgl_display_init(5);
    pico_lvgl_xpt2046_init();

    draw_master_ui();
    lv_timer_handler();


    // Set up our UART
    uart_init(UART_ID, BAUD_RATE);

    gpio_set_function(UART_TX_PIN, GPIO_FUNC_UART);
    gpio_set_function(UART_RX_PIN, GPIO_FUNC_UART);

    int __unused actual = uart_set_baudrate(UART_ID, BAUD_RATE);
    uart_set_hw_flow(UART_ID, false, false);
    uart_set_format(UART_ID, DATA_BITS, STOP_BITS, PARITY);
    uart_set_fifo_enabled(UART_ID, false);

    // nmbs_uart_read() and nmbs_uart_write() are implemented by the user
    nmbs_platform_conf platform_conf;
    nmbs_platform_conf_create(&platform_conf);
    platform_conf.transport = NMBS_TRANSPORT_RTU;
    platform_conf.read = nmbs_uart_read;
    platform_conf.write = nmbs_uart_write;

    err = nmbs_client_create(&nmbs, &platform_conf);
    if (err != NMBS_ERROR_NONE) {
        fprintf(stderr, "Error creating modbus client\n");
        return 1;
    }

    // Set only the polling timeout. Byte timeout will be handled by the TCP connection
    nmbs_set_read_timeout(&nmbs, 1000);

    uint16_t registers[2] = {0,10};
    nmbs_set_destination_rtu_address(&nmbs, RTU_WS2812_SERVER_ADDRESS);
    nmbs_error err = nmbs_write_multiple_registers(&nmbs, 0, 2, registers);

    nmbs_set_destination_rtu_address(&nmbs, RTU_DOOR_SERVER_ADDRESS);
    err = nmbs_write_single_coil(&nmbs, DOOR_LOCK_ADDRESS, false);
    err = nmbs_write_single_coil(&nmbs, DOOR_OPEN_CLOSE_ADDRESS, false);
    nmbs_bitfield coils;

    while (true) {
        lv_timer_handler();

        sleep_ms(5);
    }
}


• pico_modbus_rtu_master.h

#ifndef __PICO_MODBUS_RTU_MASETER_
#define __PICO_MODBUS_RTU_MASETER_

// UART defines
#define UART_ID uart0
#define UART_TX_PIN 0
#define UART_RX_PIN 1

#define BAUD_RATE       115200
#define DATA_BITS       8
#define STOP_BITS       1
#define PARITY          UART_PARITY_EVEN

#define DOOR_OPEN_CLOSE_ADDRESS     1
#define DOOR_LOCK_ADDRESS           2
#define REED_SWITCH_ADDRESS         3

// The data model of this sever will support coils addresses 0 to 100 and registers addresses from 0 to 32
#define COILS_ADDR_MAX 4
#define REGS_ADDR_MAX 2

#define RTU_DOOR_SERVER_ADDRESS 1
#define RTU_WS2812_SERVER_ADDRESS 2

#endif

[Raspberry Pi Pico W] MODBUS EP 1. MODBUS TCP

本影片以Raspberry Pi Pico W使用nanoMODBUS與LWIP libraries. 實做MODBUS TCP, 以一個Master與兩個Slaves進行測試.

架構如下圖：

Slave 1(MODBUS Server 1)提供溫度與濕度，Slave 2(MODBUS server 2)提供8 個Coils分別連接8的switches(本測試專案連接8個Leds）。

網路層TCP/IP使用Pico LWIP library, MODBUS protocol層使用nanoMODBUS library(https://github.com/debevv/nanoMODBUS)，如下圖所示：

在本專案中，兩個MODBUS servers分別使用mDNS命名為picow_mb_ht.local與picow_mb_leds.local。

modbus master(MODBUS Client)在lwipopts.h設定

以便透過mDNS查詢modbus server 1 與server 2的IP address。

MODBUS TCP/IP ADU各欄位分如下：

• MBAP Header:

• PDU function Code:

• PDU Data:

內容與長度依Function code而有不同內容。

詳細內容請參閱：https://modbus.org/docs/Modbus_Application_Protocol_V1_1b3.pdf

成果影片：

程式碼：

nanoMODBUS library 配合本專案以queue儲存tcp/ip packet, nanomodbus.c程式碼作如下的修改：

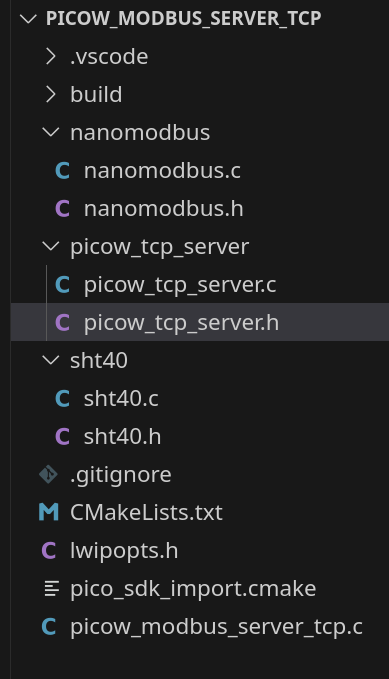

modbus slave(modbus Server, tcp server)端程式碼：

• CMakeLists.txt


# Generated Cmake Pico project file

cmake_minimum_required(VERSION 3.13)

set(CMAKE_C_STANDARD 11)
set(CMAKE_CXX_STANDARD 17)
set(CMAKE_EXPORT_COMPILE_COMMANDS ON)

# Initialise pico_sdk from installed location
# (note this can come from environment, CMake cache etc)

# == DO NOT EDIT THE FOLLOWING LINES for the Raspberry Pi Pico VS Code Extension to work ==
if(WIN32)
    set(USERHOME $ENV{USERPROFILE})
else()
    set(USERHOME $ENV{HOME})
endif()
set(sdkVersion 2.1.0)
set(toolchainVersion 13_3_Rel1)
set(picotoolVersion 2.1.0)
set(picoVscode ${USERHOME}/.pico-sdk/cmake/pico-vscode.cmake)
if (EXISTS ${picoVscode})
    include(${picoVscode})
endif()
# ====================================================================================
set(PICO_BOARD pico_w CACHE STRING "Board type")

# Pull in Raspberry Pi Pico SDK (must be before project)
include(pico_sdk_import.cmake)

project(picow_modbus_server_tcp C CXX ASM)

# Initialise the Raspberry Pi Pico SDK
pico_sdk_init()

# Add executable. Default name is the project name, version 0.1

add_executable(picow_modbus_server_tcp picow_modbus_server_tcp.c
                                        nanomodbus/nanomodbus.c
                                        picow_tcp_server/picow_tcp_server.c
                                        sht40/sht40.c)

pico_set_program_name(picow_modbus_server_tcp "picow_modbus_server_tcp")
pico_set_program_version(picow_modbus_server_tcp "0.1")

# Modify the below lines to enable/disable output over UART/USB
pico_enable_stdio_uart(picow_modbus_server_tcp 1)
pico_enable_stdio_usb(picow_modbus_server_tcp 0)

# Add the standard library to the build
target_link_libraries(picow_modbus_server_tcp
        pico_stdlib
        hardware_i2c)

# Add the standard include files to the build
target_include_directories(picow_modbus_server_tcp PRIVATE
  ${CMAKE_CURRENT_LIST_DIR}
  ${CMAKE_CURRENT_LIST_DIR}/nanomodbus
  ${CMAKE_CURRENT_LIST_DIR}/pciow_tcp_server
  ${CMAKE_CURRENT_LIST_DIR}/sht40
)

# Add any user requested libraries
target_link_libraries(picow_modbus_server_tcp
        pico_cyw43_arch_lwip_threadsafe_background
        pico_lwip_mdns
        )

pico_add_extra_outputs(picow_modbus_server_tcp)



• picow_modbus_server_tcp.c


#include <stdio.h>
#include "pico/stdlib.h"
#include "pico/cyw43_arch.h"

#include "nanomodbus.h"

#include "lwip/pbuf.h"
#include "lwip/tcp.h"
#include "lwip/apps/mdns.h"
#include "picow_tcp_server/picow_tcp_server.h"
#include "sht40/sht40.h"


nmbs_t nmbs;

// The data model of this sever will support coils addresses 0 to 100 and registers addresses from 0 to 32
#define COILS_ADDR_MAX 100
#define REGS_ADDR_MAX 32
#define FILE_SIZE_MAX 32

// A single nmbs_bitfield variable can keep 2000 coils
bool terminate = false;
nmbs_bitfield server_coils = {0};
uint16_t server_registers[REGS_ADDR_MAX] = {0};
uint16_t server_file[FILE_SIZE_MAX];

#define UNUSED_PARAM(x) ((x) = (x))

void sighandler(int s) {
    UNUSED_PARAM(s);
    terminate = true;
}

nmbs_error handle_read_coils(uint16_t address, uint16_t quantity, nmbs_bitfield coils_out, uint8_t unit_id, void* arg) {
    UNUSED_PARAM(arg);
    UNUSED_PARAM(unit_id);

    if (address + quantity > COILS_ADDR_MAX + 1)
        return NMBS_EXCEPTION_ILLEGAL_DATA_ADDRESS;

    // Read our coils values into coils_out
    for (int i = 0; i < quantity; i++) {
        bool value = nmbs_bitfield_read(server_coils, address + i);
        nmbs_bitfield_write(coils_out, i, value);
    }

    return NMBS_ERROR_NONE;
}

nmbs_error handle_read_discrete_inputs(uint16_t address, uint16_t quantity, nmbs_bitfield coils_out, uint8_t unit_id, void* arg) {
    UNUSED_PARAM(arg);
    UNUSED_PARAM(unit_id);

    if (address + quantity > COILS_ADDR_MAX + 1)
        return NMBS_EXCEPTION_ILLEGAL_DATA_ADDRESS;

    // Read our coils values into coils_out
    for (int i = 0; i < quantity; i++) {
        bool value = nmbs_bitfield_read(server_coils, address + i);
        nmbs_bitfield_write(coils_out, i, value);
    }

    return NMBS_ERROR_NONE;
}

nmbs_error handle_write_single_coil(uint16_t address, bool value, uint8_t unit_id, void* arg) {
    UNUSED_PARAM(arg);
    UNUSED_PARAM(unit_id);

    if (address > COILS_ADDR_MAX )
        return NMBS_EXCEPTION_ILLEGAL_DATA_ADDRESS;

    // Write coils values to our server_coils

        nmbs_bitfield_write(server_coils, address, value);

gpio_put(address+2, value);  // address 0 map to gpio 2
    return NMBS_ERROR_NONE;
}

nmbs_error handle_write_multiple_coils(uint16_t address, uint16_t quantity, const nmbs_bitfield coils, uint8_t unit_id,
                                       void* arg) {
    UNUSED_PARAM(arg);
    UNUSED_PARAM(unit_id);

    if (address + quantity > COILS_ADDR_MAX + 1)
        return NMBS_EXCEPTION_ILLEGAL_DATA_ADDRESS;

    // Write coils values to our server_coils
    for (int i = 0; i < quantity; i++) {
        nmbs_bitfield_write(server_coils, address + i, nmbs_bitfield_read(coils, i));
    }
    uint32_t gpio_value = server_coils[0] << 2;
    gpio_put_masked(0x3fc, gpio_value);
    return NMBS_ERROR_NONE;
}


nmbs_error handler_read_holding_registers(uint16_t address, uint16_t quantity, uint16_t* registers_out, uint8_t unit_id,
                                          void* arg) {
    UNUSED_PARAM(arg);
    UNUSED_PARAM(unit_id);

    if (address + quantity > REGS_ADDR_MAX + 1)
        return NMBS_EXCEPTION_ILLEGAL_DATA_ADDRESS;

    // Read our registers values into registers_out
    float temp, humi;
    sht40_get_th_data(&temp, &humi);
    printf("t:%f, h:%f\n", temp, humi);
    server_registers[0]=(int)temp;
    server_registers[1]=(int)((temp-(int)temp)*100);
    server_registers[2]=(int)humi;
    server_registers[3]=(int)((humi-(int)humi)*100);
    for (int i = 0; i < quantity; i++)
        registers_out[i] = server_registers[address + i];

    for(int i=0; i < quantity; i++)
        printf("%d,", registers_out[i]);

    printf("--\n");

    return NMBS_ERROR_NONE;
}

nmbs_error handle_write_single_register(uint16_t address, uint16_t value, uint8_t unit_id, void* arg) {
    UNUSED_PARAM(arg);
    UNUSED_PARAM(unit_id);

    if (address > REGS_ADDR_MAX)
        return NMBS_EXCEPTION_ILLEGAL_DATA_ADDRESS;

    // Write registers values to our server_registers

        server_registers[address] = value;

    return NMBS_ERROR_NONE;
}

nmbs_error handle_write_multiple_registers(uint16_t address, uint16_t quantity, const uint16_t* registers,
                                           uint8_t unit_id, void* arg) {
    UNUSED_PARAM(arg);
    UNUSED_PARAM(unit_id);

    if (address + quantity > REGS_ADDR_MAX + 1)
        return NMBS_EXCEPTION_ILLEGAL_DATA_ADDRESS;

    // Write registers values to our server_registers
    for (int i = 0; i < quantity; i++)
        server_registers[address + i] = registers[i];

    return NMBS_ERROR_NONE;
}

int32_t nmbs_transport_read(uint8_t* buf, uint16_t count, int32_t byte_timeout_ms, void* arg) {

    TCP_SERVER_T *state = (TCP_SERVER_T*)arg;

    static recv_queue_t temp_recv;
    static uint16_t queue_left = 0;
    static uint16_t recv_count=0;
    static uint16_t start_index=0;

    if (queue_left == 0) {
        if (!queue_try_remove(&(state->recv_queue), &temp_recv))
                return 0;
            queue_left = temp_recv.buffer_len;
    }

    recv_count = queue_left <= count ? queue_left : count;
    start_index = temp_recv.buffer_len-queue_left;
    for (int i=0; i < recv_count; i++) buf[i] = temp_recv.buffer[start_index+i];

    queue_left = queue_left-recv_count;
/*
    //Debug
    printf("\n=====transport read:%d:%d:%d\n", count, temp_recv.buffer_len, queue_left);
    for (int i=0; i < recv_count; i++) {
        printf("%02x ", buf[i]);
    }
    printf("\n==\n");
*/


    return recv_count;
}

int32_t nmbs_transport_write(const uint8_t* buf, uint16_t count, int32_t byte_timeout_ms,void* arg){

    TCP_SERVER_T *state = (TCP_SERVER_T*)arg;

    tcp_write(state->client_pcb, buf, count, TCP_WRITE_FLAG_COPY);

    //Debug
    printf("======transport write:\n");
    for (int i=0; i < count; i++) {
        printf("%02x ", buf[i]);
    }
    printf("\n");

    return count;
} /*!< Bytes write transport function pointer */



int main()
{
    stdio_init_all();

    // Initialise the Wi-Fi chip
    if (cyw43_arch_init()) {
        printf("Wi-Fi init failed\n");
        return -1;
    }
    cyw43_gpio_set(&cyw43_state, CYW43_WL_GPIO_LED_PIN,false);

    gpio_init_mask(0x3FC);
    gpio_set_dir_out_masked(0x3fc);

    sht40_init();


    // Enable wifi station
    cyw43_arch_enable_sta_mode();

    printf("Connecting to Wi-Fi...\n");
    if (cyw43_arch_wifi_connect_timeout_ms(SSID, PWD, CYW43_AUTH_WPA2_AES_PSK, 30000)) {
        printf("failed to connect.\n");
        return 1;
    } else {
        printf("Connected.\n");
        // Read the ip address in a human readable way
        uint8_t *ip_address = (uint8_t*)&(cyw43_state.netif[0].ip_addr.addr);
        printf("IP address %d.%d.%d.%d\n", ip_address[0], ip_address[1], ip_address[2], ip_address[3]);
    }
#if LWIP_MDNS_RESPONDER
    mdns_resp_init();
    uint8_t host_name[] = "picow_mb_ht";
    //uint8_t host_name[] = "picow_mb_leds";
    if (mdns_resp_add_netif(netif_default, host_name)== ERR_OK)
    {
        printf("mDNS add successfully\n");
    } else {
        printf("mDNS failure\n");
    }
#endif
    picow_tcp_server_init();


    // nmbs_transport_read() and nmbs_transport_write() are implemented by the user
    nmbs_platform_conf platform_conf;
    nmbs_platform_conf_create(&platform_conf);
    platform_conf.transport = NMBS_TRANSPORT_TCP;
    platform_conf.read = nmbs_transport_read;
    platform_conf.write = nmbs_transport_write;

    extern TCP_SERVER_T *modbus_tcp_server;
    platform_conf.arg = modbus_tcp_server;

    nmbs_callbacks callbacks;
    nmbs_callbacks_create(&callbacks);
    callbacks.read_coils = handle_read_coils;
    callbacks.read_discrete_inputs = handle_read_discrete_inputs;
    callbacks.write_single_coil = handle_write_single_coil;
    callbacks.write_multiple_coils = handle_write_multiple_coils;
    callbacks.read_holding_registers = handler_read_holding_registers;
    callbacks.write_multiple_registers = handle_write_multiple_registers;
    callbacks.write_single_register = handle_write_single_register;


    nmbs_error err = nmbs_server_create(&nmbs, 0, &platform_conf, &callbacks);
    if (err != NMBS_ERROR_NONE) {
        fprintf(stderr, "Error creating modbus server\n");
        return 1;
    }

    // Set only the polling timeout. Byte timeout will be handled by the TCP connection
    nmbs_set_read_timeout(&nmbs, 2000);

    printf("Modbus TCP server started\n");
    cyw43_gpio_set(&cyw43_state, CYW43_WL_GPIO_LED_PIN,true);

    while (true) {
        nmbs_server_poll(&nmbs);

#if PICO_CYW43_ARCH_POLL
        cyw43_arch_poll();
         cyw43_arch_wait_for_work_until(make_timeout_time_ms(1000));
#else
        tight_loop_contents();
#endif
    }
}


• picow_tcp_server.c


#include <stdio.h>
#include "pico/stdlib.h"
#include "pico/cyw43_arch.h"

#include "nanomodbus.h"

#include "lwip/pbuf.h"
#include "lwip/tcp.h"

#include "picow_tcp_server.h"


TCP_SERVER_T *modbus_tcp_server;
extern nmbs_t nmbs;

static err_t tcp_client_close(struct tcp_pcb *client_pcb) {
    err_t err = ERR_OK;
    if (client_pcb != NULL) {
        tcp_arg(client_pcb, NULL);
        tcp_poll(client_pcb, NULL, 0);
        tcp_sent(client_pcb, NULL);
        tcp_recv(client_pcb, NULL);
        tcp_err(client_pcb, NULL);
        err = tcp_close(client_pcb);
        if (err != ERR_OK) {
            DEBUG_printf("close failed %d, calling abort\n", err);
            tcp_abort(client_pcb);
            err = ERR_ABRT;
        }
        client_pcb = NULL;
    }

    return err;
}

static err_t tcp_server_close(void *arg) {
    TCP_SERVER_T *state = (TCP_SERVER_T*)arg;
    err_t err = ERR_OK;
    if (state->client_pcb != NULL) {
        tcp_arg(state->client_pcb, NULL);
        tcp_poll(state->client_pcb, NULL, 0);
        tcp_sent(state->client_pcb, NULL);
        tcp_recv(state->client_pcb, NULL);
        tcp_err(state->client_pcb, NULL);
        err = tcp_close(state->client_pcb);
        if (err != ERR_OK) {
            DEBUG_printf("close failed %d, calling abort\n", err);
            tcp_abort(state->client_pcb);
            err = ERR_ABRT;
        }
        state->client_pcb = NULL;
    }
    if (state->server_pcb) {
        tcp_arg(state->server_pcb, NULL);
        tcp_close(state->server_pcb);
        state->server_pcb = NULL;
    }
    return err;
}

static err_t tcp_server_sent(void *arg, struct tcp_pcb *tpcb, u16_t len) {
    TCP_SERVER_T *state = (TCP_SERVER_T*)arg;
    return ERR_OK;
}

err_t tcp_server_send_data(void *arg, struct tcp_pcb *tpcb)
{
    TCP_SERVER_T *state = (TCP_SERVER_T*)arg;

    return ERR_OK;
}

err_t tcp_server_recv(void *arg, struct tcp_pcb *tpcb, struct pbuf *p, err_t err) {
    TCP_SERVER_T *state = (TCP_SERVER_T*)arg;
    state->client_pcb = tpcb;
    static recv_queue_t temp_recv;
    if (!p) {
        tcp_client_close(tpcb);
        tcp_abort(tpcb);
        return ERR_ABRT;
    }

    if (p->tot_len > 0) {
        //DEBUG_printf("tcp_client_recv %d err %d\n", p->tot_len, err);

        // Receive the buffer
        uint16_t recv_len = pbuf_copy_partial(p, temp_recv.buffer, p->tot_len, 0);
        temp_recv.buffer_len = recv_len;
        //queue_add_blocking(&state->recv_queue, &temp_recv);
    if (!queue_try_add(&state->recv_queue, &temp_recv)) {
        printf("\n=======\n\nbusy\n-------\n");
        return ERR_INPROGRESS;
    }

        tcp_recved(tpcb, recv_len);
//Debug
        printf("---------recv---------\n");
        for (int i =0; i < recv_len; i++) {
            printf("%02x ",temp_recv.buffer[i]);
        }
        printf("\n-------------\n");

    }
    pbuf_free(p);

    nmbs_server_poll(&nmbs); // process modbus request

    return ERR_OK;


}

static err_t tcp_server_poll(void *arg, struct tcp_pcb *tpcb) {

    //nmbs_error err = nmbs_server_poll(&nmbs);   // process modbus request while tpc idle
    //if (err != NMBS_ERROR_NONE) {
    //    printf("Error on modbus connection - %s\n", nmbs_strerror(err));
        // In a more complete example, we would handle this error by checking its nmbs_error value
    //}

    return ERR_OK;
}

static void tcp_server_err(void *arg, err_t err) {
    if (err != ERR_ABRT) {
        DEBUG_printf("tcp_client_err_fn %d\n", err);
    }
}

static err_t tcp_server_accept(void *arg, struct tcp_pcb *client_pcb, err_t err) {
    TCP_SERVER_T *state = (TCP_SERVER_T*)arg;
    if (err != ERR_OK || client_pcb == NULL) {
        DEBUG_printf("Failure in accept\n");
        return err;
    }
    DEBUG_printf("Client connected\n");

    state->client_pcb = client_pcb;

    tcp_arg(client_pcb, state);
    tcp_sent(client_pcb, tcp_server_sent);
    tcp_recv(client_pcb, tcp_server_recv);
    tcp_poll(client_pcb, tcp_server_poll, POLL_TIME_S * 2);
    tcp_err(client_pcb, tcp_server_err);

    return ERR_OK;
}

static bool tcp_server_open(void *arg) {
    TCP_SERVER_T *state = (TCP_SERVER_T*)arg;
    DEBUG_printf("Starting server at %s on port %u\n", ip4addr_ntoa(netif_ip4_addr(netif_list)), MODBUS_TCP_PORT);

    struct tcp_pcb *pcb = tcp_new_ip_type(IPADDR_TYPE_ANY);
    if (!pcb) {
        DEBUG_printf("failed to create pcb\n");
        return false;
    }

    err_t err = tcp_bind(pcb, NULL, MODBUS_TCP_PORT);
    if (err) {
        DEBUG_printf("failed to bind to port %u\n", MODBUS_TCP_PORT);
        return false;
    }

    state->server_pcb = tcp_listen_with_backlog(pcb, 1);
    if (!state->server_pcb) {
        DEBUG_printf("failed to listen\n");
        if (pcb) {
            tcp_close(pcb);
        }
        return false;
    }

    tcp_arg(state->server_pcb, state);
    tcp_accept(state->server_pcb, tcp_server_accept);

    return true;
}

void picow_tcp_server_init(void) {
    /* modbus TCP server  init*/
    modbus_tcp_server = calloc(1, sizeof(TCP_SERVER_T));
    if (!modbus_tcp_server) {
        return;
    }

    queue_init(&modbus_tcp_server->recv_queue, sizeof(recv_queue_t), 4);

    if (!tcp_server_open(modbus_tcp_server)) {
        DEBUG_printf("tcp server open error\n");
        return;
    }

    return;

}



• picow_tcp_server.h


#define MODBUS_TCP_PORT 502            //MODBUS default port
#define DEBUG_printf printf
#define POLL_TIME_S 1


#define SSID "your-SSID"
#define PWD "your-password"

#include "pico/util/queue.h"

typedef struct __recv_queue_t{
    uint8_t buffer[260];
    uint16_t buffer_len;
} recv_queue_t;

typedef struct TCP_SERVER_T_ {
    struct tcp_pcb *server_pcb;
    struct tcp_pcb *client_pcb;
    queue_t recv_queue;
} TCP_SERVER_T;

void picow_tcp_server_init(void);

• sht40.c


#include "stdio.h"
#include "pico/stdlib.h"
#include "sht40.h"

static float sht40_temp=0;
static float sht40_humidity=0;


void sht40_init() {
     i2c_init(I2C_SHT40_PORT, 400*1000);

    gpio_set_function(I2C_SHT40_SDA, GPIO_FUNC_I2C);
    gpio_set_function(I2C_SHT40_SCL, GPIO_FUNC_I2C);
    gpio_pull_up(I2C_SHT40_SDA);
    gpio_pull_up(I2C_SHT40_SCL);
}

bool sht40_read(float *temp, float *humi) {
        char buff[8];
        int ret;
        float t_ticks, rh_ticks, t_degC, rh_pRH;
        buff[0] = 0xFD;
        ret = i2c_write_blocking(I2C_SHT40_PORT, 0x44, buff,1,false);
        busy_wait_ms(10);
        ret = i2c_read_blocking(I2C_SHT40_PORT, 0x44, buff, 6, false);
        t_ticks = buff[0] * 256 + buff[1];
        //checksum_t = rx_bytes[2]
        rh_ticks = buff[3] * 256 + buff[4];
        //checksum_rh = rx_bytes[5]
        t_degC = -45 + 175 * t_ticks/65535;
        rh_pRH = -6 + 125 * rh_ticks/65535;
        if (rh_pRH > 100)
            rh_pRH = 100;
        if (rh_pRH < 0)
            rh_pRH = 0;

        *temp = t_degC;
        *humi = rh_pRH;
        //printf("temp:%f, himidity:%f\n", t_degC, rh_pRH);
}


void sht40_get_th_data(float* temp, float* humi) {
    sht40_read(temp, humi);
    //*temp = sht40_temp;
    //*humi = sht40_humidity;
}

• sht40.h


#ifndef __SHT40_H__
#define __SHT40_H__
#include "hardware/i2c.h"

#define I2C_SHT40_PORT i2c0
#define I2C_SHT40_SDA   16
#define I2C_SHT40_SCL   17

void sht40_init();
void sht40_get_th_data(float* temp, float* humi);

#endif

modbus MASTER(modbus client, tcp client)端程式碼：

pico_lvgl程式碼請參閱：

[Raspberry Pi Pico (c-sdk)] LVGL Graphics Library & Pico PIO TFT display driver(Serial or Parallel)

• CMakeLists.txt:


# Generated Cmake Pico project file

cmake_minimum_required(VERSION 3.13)

set(CMAKE_C_STANDARD 11)
set(CMAKE_CXX_STANDARD 17)
set(CMAKE_EXPORT_COMPILE_COMMANDS ON)

# Initialise pico_sdk from installed location
# (note this can come from environment, CMake cache etc)

# == DO NOT EDIT THE FOLLOWING LINES for the Raspberry Pi Pico VS Code Extension to work ==
if(WIN32)
    set(USERHOME $ENV{USERPROFILE})
else()
    set(USERHOME $ENV{HOME})
endif()
set(sdkVersion 2.1.0)
set(toolchainVersion 13_3_Rel1)
set(picotoolVersion 2.1.0)
set(picoVscode ${USERHOME}/.pico-sdk/cmake/pico-vscode.cmake)
if (EXISTS ${picoVscode})
    include(${picoVscode})
endif()
# ====================================================================================
set(PICO_BOARD pico_w CACHE STRING "Board type")

# Pull in Raspberry Pi Pico SDK (must be before project)
include(pico_sdk_import.cmake)

project(picow_modbus_client_tcp C CXX ASM)

# Initialise the Raspberry Pi Pico SDK
pico_sdk_init()

# Add executable. Default name is the project name, version 0.1

add_executable(picow_modbus_client_tcp picow_modbus_client_tcp.c
                                        picow_tcp_client/picow_tcp_client.c
                                        nanomodbus/nanomodbus.c
                                        lvgl_modbus_ui.c)

pico_set_program_name(picow_modbus_client_tcp "picow_modbus_client_tcp")
pico_set_program_version(picow_modbus_client_tcp "0.1")

# Modify the below lines to enable/disable output over UART/USB
pico_enable_stdio_uart(picow_modbus_client_tcp 1)
pico_enable_stdio_usb(picow_modbus_client_tcp 0)

# Add the standard library to the build
target_link_libraries(picow_modbus_client_tcp
        pico_stdlib
        pico_multicore)

# Add the standard include files to the build
target_include_directories(picow_modbus_client_tcp PRIVATE
  ${CMAKE_CURRENT_LIST_DIR}
  ${CMAKE_CURRENT_LIST_DIR}/picow_tcp_client
  ${CMAKE_CURRENT_LIST_DIR}/nanomodbus
  ${CMAKE_CURRENT_LIST_DIR}/.. # for our common lwipopts or any other standard includes, if required
)

# Add any user requested libraries

target_link_libraries(picow_modbus_client_tcp
        pico_cyw43_arch_lwip_threadsafe_background
        pico_lwip_mdns
        )

add_subdirectory(pico_lvgl)
target_link_libraries(picow_modbus_client_tcp
        pico_lvgl

)

pico_add_extra_outputs(picow_modbus_client_tcp)



• picow_modbus_client_tcp.c


#include <stdio.h>
#include "pico/stdlib.h"
#include "pico/cyw43_arch.h"
#include "hardware/pio.h"
#include "pico_lvgl.h"
#include "picow_tcp_client.h"
#include "nanomodbus.h"
#include "pico/multicore.h"
#include "pico/mutex.h"

//#define _DEBUG
#ifdef _DEBUG
#define DEBUG_PRINT(...) printf(__VA_ARGS__)
#else
#define DEBUG_PRINT(...) (void) (0)
#endif


PIO TFT_PIO = pio1;
#define TFT_SM 1
#define TFT_SDI_GPIO 9
#define TFT_CSX_DCX_SCK_GPIO 6 // CSX=8, DCX=7, SCK=6, SIDE_SET

extern MB_SERVER_T *modbus_ht_server, *modbus_sw_server;
nmbs_t nmbs;
mutex_t sent_request;

void draw_master_ui();
extern lv_obj_t *temp_label, *humi_label, *msg_label;

int32_t nmbs_transport_read(uint8_t* buf, uint16_t count, int32_t timeout_ms, void* arg) {
    MB_SERVER_T *state=(MB_SERVER_T*) arg;

    uint16_t loop_count = 0;

    if (state->queue_left == 0) {
        while (queue_is_empty(&state->recv_queue) && loop_count < 20) {
            loop_count++;
            busy_wait_ms(50);
        }
        if (!queue_try_remove(&(state->recv_queue), &state->temp_recv))  {
                return 0;
        } else {
            DEBUG_PRINT("\t\t\t\t---loop count:%d\n", loop_count);
        }
        state->queue_left = state->temp_recv.buffer_len;
    }

    state->recv_count = state->queue_left <= count ? state->queue_left : count;
    state->start_index = state->temp_recv.buffer_len-state->queue_left;
    for (int i=0; i < state->recv_count; i++) buf[i] = state->temp_recv.buffer[state->start_index+i];

    state->queue_left = state->queue_left-state->recv_count;

    //Debug
    DEBUG_PRINT("\n=====transport read:%d:%d\n", count, state->temp_recv.buffer_len);
    for (int i=0; i < state->recv_count; i++) {
        DEBUG_PRINT("%02x ", buf[i]);
    }
    DEBUG_PRINT("\n==\n");

    return state->recv_count;
}

int32_t nmbs_transport_write(const uint8_t* buf, uint16_t count, int32_t timeout_ms, void* arg) {
    MB_SERVER_T *state = (MB_SERVER_T*)arg;

    // Debug
    DEBUG_PRINT("====\nnmbs_transport_write count:%d\n", count);
    for (int i=0; i < count;i++) {
        DEBUG_PRINT("%02x ", buf[i]);
    }
    DEBUG_PRINT("\n====\n");

    err_t err = tcp_write(state->tcp_pcb, buf, count, 0 /*TCP_WRITE_FLAG_COPY*/);
    if (err != ERR_OK)
    {
        //tcp_abort(state->tcp_pcb);
        DEBUG_PRINT("tcp_write error:%d:%d\n", err, tcp_sndbuf(state->tcp_pcb));
        return 0;
    }
    err = tcp_output(state->tcp_pcb);
    if (err != ERR_OK)
    {
        DEBUG_PRINT("%s:tcp_output:%d\n", state->server_host_name, err);
        return 0;
    }
    return count;
}

void core1_thread(void) {
    uint8_t label_buff[30];
    uint16_t holding_registers[4];
    uint16_t trans_timeout_count=0;
    while(1) {
        if (!modbus_ht_server->connected) {
            sleep_ms(5000);
            if (picow_tcp_client_open(modbus_ht_server)) trans_timeout_count = 0;
            continue;
        }
        lv_label_set_text(msg_label, "Receiving HT data...");
        lv_timer_handler();
        if (!mutex_enter_timeout_ms(&sent_request, nmbs.read_timeout_ms*2)) continue;
        nmbs_set_platform_arg(&nmbs, modbus_ht_server);
        nmbs_error nmbserr= nmbs_read_holding_registers(&nmbs, 0, 4, holding_registers);
        if (nmbserr == NMBS_ERROR_NONE) {
            sprintf(label_buff,"Temp: %d.%d \xC2\xB0""C", holding_registers[0], holding_registers[1]);
            lv_label_set_text(temp_label, label_buff);
            sprintf(label_buff, "Humi: %d.%d%%", holding_registers[2], holding_registers[3]);
            lv_label_set_text(humi_label, label_buff);
            lv_label_set_text(msg_label, "");
        }else {
            tcp_abort(modbus_ht_server->tcp_pcb);
            DEBUG_PRINT("read holding registers error:%d\n", nmbserr);
            trans_timeout_count++;
            lv_label_set_text(msg_label, "HT Server error!");
            lv_timer_handler();
            if (nmbserr < 0 && trans_timeout_count > 5) {
                nmbs_set_platform_arg(&nmbs, modbus_ht_server);
                picow_tcp_client_close(modbus_ht_server);

            }
        }

        mutex_exit(&sent_request);
        lv_timer_handler();
        sleep_ms(3000);

    }
}

int main()
{
    stdio_init_all();

    mutex_init(&sent_request);

    pico_lvgl_tft_init(TFT_PIO, TFT_SM, TFT_SDI_GPIO, TFT_CSX_DCX_SCK_GPIO);
    tft_set_orientation(TFT_ORIENTATION_LANDSCAPE);

    pico_lvgl_display_init(5);
    pico_lvgl_xpt2046_init();

    draw_master_ui();
    lv_timer_handler();

    // Initialise the Wi-Fi chip
    if (cyw43_arch_init()) {
        DEBUG_PRINT("Wi-Fi init failed\n");
        lv_label_set_text(msg_label, "Wi-Fi init failed");
        lv_timer_handler();
        return -1;
    }


    if (!picow_tcp_client_init()) return 0;


    nmbs_platform_conf platform_conf;
    nmbs_platform_conf_create(&platform_conf);
    platform_conf.transport = NMBS_TRANSPORT_TCP;
    platform_conf.read = nmbs_transport_read;
    platform_conf.write = nmbs_transport_write;

    // Create the modbus client
    nmbs_error err = nmbs_client_create(&nmbs, &platform_conf);
    if (err != NMBS_ERROR_NONE) {
        lv_label_set_text(msg_label, "Error creating modbus client");
        lv_timer_handler();
        fprintf(stderr, "Error creating modbus client\n");
        if (!nmbs_error_is_exception(err))
            return 1;
    }

    // Set only the response timeout. Byte timeout will be handled by the TCP connection
    nmbs_set_read_timeout(&nmbs, 1000);
    nmbs_set_byte_timeout(&nmbs, 1000);

    multicore_launch_core1(core1_thread);


    while (true)
    {
        lv_timer_handler();

       sleep_ms(50);
        //tight_loop_contents();
    }

}


• lvgl_modbus_ui.c


#include "lvgl.h"
#include "nanomodbus.h"
#include "stdio.h"
#include "pico/stdlib.h"
#include "picow_tcp_client.h"
#include "pico/mutex.h"

lv_obj_t *temp_label, *humi_label, *msg_label, *slave1_label, *slave2_label;
lv_obj_t **chk;
lv_obj_t **sw;
extern nmbs_t nmbs;
extern MB_SERVER_T *modbus_ht_server, *modbus_sw_server;
extern mutex_t sent_request;

static void btn_event_handler(lv_event_t * e)
{
    lv_event_code_t code = lv_event_get_code(e);
    lv_obj_t * obj = lv_event_get_target(e);
   uint8_t address;
    nmbs_bitfield coils;
   int i;
    if(code == LV_EVENT_CLICKED) {
        if (!modbus_sw_server->connected) return;
        for ( i=0; i < 8; i++) {
            if (lv_obj_get_state(*(chk+i)) & LV_STATE_CHECKED) {
                nmbs_bitfield_set(coils, i);
            } else {
                nmbs_bitfield_unset(coils, i);
            }
        }
        lv_timer_handler();
        if (!mutex_enter_timeout_ms(&sent_request, nmbs.read_timeout_ms*2)) {
            lv_label_set_text(msg_label, "Network busy! Try again");
            lv_timer_handler();
            return;
        }
        nmbs_set_platform_arg(&nmbs, modbus_sw_server);
        nmbs_error nmbserr=nmbs_write_multiple_coils(&nmbs, 0, 8, coils);
        if (nmbserr == NMBS_ERROR_NONE) {
            for (int i=0; i < 8; i++) {
                if (nmbs_bitfield_read(coils, i)) {
                    lv_obj_add_state(*(sw+i), LV_STATE_CHECKED);
                }
                else {
                    lv_obj_clear_state(*(sw+i), LV_STATE_CHECKED);
                }
            }

        } else {
            printf("0:write_multiple_coils error:%d\n", nmbserr);
        }
        mutex_exit(&sent_request);
        lv_timer_handler();
    }
}

static void switch_event_handler(lv_event_t * e)
{
    lv_event_code_t code = lv_event_get_code(e);
    lv_obj_t * obj = lv_event_get_target(e);
   uint8_t address;
    int ud = *(int*)lv_event_get_user_data(e);

   int i;
    if(code == LV_EVENT_VALUE_CHANGED && ud == 1) {
        if (!modbus_sw_server->connected) return;
        for ( i=0; i < 8; i++) {
            if (obj == *(sw+i)){
                address = i;
                break;
            }
        }
        lv_timer_handler();
        uint8_t coil = lv_obj_has_state(obj, LV_STATE_CHECKED) ? 1 : 0;
        if (!mutex_enter_timeout_ms(&sent_request, nmbs.read_timeout_ms*2)) {
            lv_label_set_text(msg_label, "Network busy! Try again");
            lv_timer_handler();
            return;
        }
        nmbs_set_platform_arg(&nmbs, modbus_sw_server);
        nmbs_error nmbserr=nmbs_write_single_coil(&nmbs, address, coil);
        if (coil)
            lv_obj_add_state(*(chk+i), LV_STATE_CHECKED);
        else
            lv_obj_clear_state(*(chk+i), LV_STATE_CHECKED);
        if (nmbserr != NMBS_ERROR_NONE) printf("0:write_single_coils error:%d\n", nmbserr);
        mutex_exit(&sent_request);
        lv_timer_handler();
    }
}

void draw_master_ui() {

    slave1_label = lv_label_create(lv_scr_act());
    slave2_label = lv_label_create(lv_scr_act());
    lv_obj_align(slave1_label, LV_ALIGN_TOP_LEFT, 10, 10);
    lv_obj_set_style_text_font(slave1_label, &lv_font_montserrat_30, 0);
    lv_obj_set_style_text_color(slave1_label, lv_palette_main(LV_PALETTE_BLUE),0);
    lv_label_set_text(slave1_label, "Slave 1:" LV_SYMBOL_CLOSE);
    msg_label = lv_label_create(lv_scr_act());
    lv_obj_align(msg_label, LV_ALIGN_TOP_MID, 0, 50);
    lv_obj_set_style_text_font(msg_label, &lv_font_montserrat_18, 0);
    lv_obj_set_style_text_color(msg_label, lv_palette_main(LV_PALETTE_RED),0);
    lv_label_set_text(msg_label, "");

    temp_label = lv_label_create(lv_scr_act());
    lv_obj_align_to(temp_label, slave1_label, LV_ALIGN_OUT_RIGHT_MID, 60, 0);
    lv_obj_set_style_text_font(temp_label, &lv_font_montserrat_18, 0);
    lv_label_set_text(temp_label, "");

    humi_label = lv_label_create(lv_scr_act());
    lv_obj_align_to(humi_label, temp_label, LV_ALIGN_OUT_LEFT_MID, 180, 0);
    lv_obj_set_style_text_font(humi_label, &lv_font_montserrat_18, 0);
    lv_label_set_text(humi_label, "");
    static int ud=1;
    sw = (lv_obj_t**)malloc(sizeof(lv_obj_t*)*8);
    for (int i=0; i < 8; i++) {
        *(sw+i) = lv_switch_create(lv_scr_act());
        lv_obj_align(*(sw+i), LV_ALIGN_TOP_LEFT, i*60+5, 250);
        lv_obj_add_event_cb(*(sw+i), switch_event_handler, LV_EVENT_ALL, (void*)&ud);
        //lv_obj_add_event_cb(*(sw+i), switch_event_handler, LV_EVENT_ALL, NULL);
    }

    lv_obj_t* label = lv_label_create(lv_scr_act());
    for (int i = 0; i < 8; i++) {
        label = lv_label_create(lv_scr_act());
        lv_obj_align(label, LV_ALIGN_TOP_LEFT, 60*i+5, 180);
        lv_label_set_text_fmt(label,"SW%d",i);
    }

    chk = (lv_obj_t**)malloc(sizeof(lv_obj_t*)*8);
    for (int i=0; i < 8; i++) {
        *(chk+i) = lv_checkbox_create(lv_scr_act());
        lv_obj_align(*(chk+i), LV_ALIGN_TOP_LEFT, i*60+5, 200);
        lv_checkbox_set_text(*(chk+i), "");
        //lv_obj_add_event_cb(*(chk+i), checkbox_event_handler, LV_EVENT_ALL, NULL);
    }

    lv_obj_t* btn = lv_btn_create(lv_scr_act());
    lv_obj_align(btn, LV_ALIGN_TOP_RIGHT, -50, 130);
    label = lv_label_create(btn);
    lv_label_set_text(label, "Multi");
    lv_obj_add_event_cb(btn, btn_event_handler, LV_EVENT_ALL, NULL);

    lv_obj_align(slave2_label, LV_ALIGN_TOP_LEFT, 10, 130);
    lv_obj_set_style_text_font(slave2_label, &lv_font_montserrat_30, 0);
    lv_obj_set_style_text_color(slave2_label, lv_palette_main(LV_PALETTE_BLUE),0);
    lv_label_set_text(slave2_label, "Slave 2:"LV_SYMBOL_CLOSE);

    static lv_point_t line_points[] = { {5, 0}, {470,0} };
    /*Create style*/
    static lv_style_t style_line;
    lv_style_init(&style_line);
    lv_style_set_line_width(&style_line, 8);
    lv_style_set_line_color(&style_line, lv_palette_main(LV_PALETTE_BLUE));
    lv_style_set_line_rounded(&style_line, true);
    lv_style_set_shadow_width(&style_line,1);

    /*Create a line and apply the new style*/
    lv_obj_t * line1;
    line1 = lv_line_create(lv_scr_act());
    lv_line_set_points(line1, line_points, 2);     /*Set the points*/
    lv_obj_add_style(line1, &style_line, 0);
    lv_obj_align(line1, LV_ALIGN_TOP_LEFT, 0, 110);




}

• picow_tcp_client.c


#include "pico/stdio.h"
#include "pico/stdlib.h"
#include "picow_tcp_client.h"

#include "pico/cyw43_arch.h"
#include "lwip/tcp.h"
#include "lwip/pbuf.h"
#include "lwip/dns.h"
#include "lwip/apps/mdns.h"
#include "lvgl.h"

#define WIFI_SSID "your-SSID"
#define WIFI_PASSWD "your-password"

#define MODBUS_TCP_PORT 502
#define POLL_TIME_S 1
#define DEBUG_printf printf

MB_SERVER_T *modbus_ht_server, *modbus_sw_server;
extern lv_obj_t *msg_label, *slave1_label, *slave2_label;

// Call back with a DNS result
static void local_server_dns_found(const char *hostname, const ip_addr_t *ipaddr, void *arg) {
    MB_SERVER_T *state = (MB_SERVER_T*)arg;
    if (ipaddr) {
        state->remote_addr = *ipaddr;
        printf("modbus server address %s\n", ipaddr_ntoa(ipaddr));
        state->dns_found = true;
    } else {
        printf("modbus server dns request failed\n");
    }
}

static err_t tcp_client_close(void *arg) {
    MB_SERVER_T *state = (MB_SERVER_T*)arg;
    err_t err = ERR_OK;

    if (strcmp(state->server_host_name, "picow_mb_leds.local") == 0) {
        lv_label_set_text(slave2_label, "Slave2:" LV_SYMBOL_CLOSE);
        state->connected = false;
    }
    if (strcmp(state->server_host_name, "picow_mb_ht.local") == 0) {
        lv_label_set_text(slave1_label, "Slave1:" LV_SYMBOL_CLOSE);
        state->connected = false;
    }
    lv_timer_handler();

    if (state->tcp_pcb != NULL) {
        tcp_arg(state->tcp_pcb, NULL);
        tcp_poll(state->tcp_pcb, NULL, 0);
        tcp_sent(state->tcp_pcb, NULL);
        tcp_recv(state->tcp_pcb, NULL);
        tcp_err(state->tcp_pcb, NULL);
        err = tcp_close(state->tcp_pcb);
        if (err != ERR_OK) {
            DEBUG_printf("close failed %d, calling abort\n", err);
            tcp_abort(state->tcp_pcb);
            err = ERR_ABRT;
        }
        state->tcp_pcb = NULL;
    }
    return err;
}

static err_t tcp_client_sent(void *arg, struct tcp_pcb *tpcb, u16_t len) {
    MB_SERVER_T *state = (MB_SERVER_T*)arg;
//    DEBUG_printf("tcp_client_sent %u\n", len);
    return ERR_OK;
}

static err_t tcp_client_connected(void *arg, struct tcp_pcb *tpcb, err_t err) {
    MB_SERVER_T *state = (MB_SERVER_T*)arg;

    if (err != ERR_OK) {
        printf("connect failed %d\n", err);
        if (strcmp(state->server_host_name, "picow_mb_leds.local") == 0) {
            lv_label_set_text(slave2_label, "Slave2:" LV_SYMBOL_CLOSE);
        }
        else {
            lv_label_set_text(slave1_label, "Slave1:" LV_SYMBOL_CLOSE);
        }
        state->connected = false;
        return err;
    }
    if (strcmp(state->server_host_name, "picow_mb_leds.local") == 0) {
        lv_label_set_text(slave2_label, "Slave2:" LV_SYMBOL_OK);
    }
    else {
        lv_label_set_text(slave1_label, "Slave1:" LV_SYMBOL_OK);
    }
    lv_timer_handler();
    state->connected = true;
    DEBUG_printf("Waiting for buffer from server\n");
    return ERR_OK;
}

static err_t tcp_client_poll(void *arg, struct tcp_pcb *tpcb) {
    MB_SERVER_T *state = (MB_SERVER_T*)arg;
    //DEBUG_printf("tcp_client_poll:%s\n", state->server_host_name);
    return ERR_OK;
}

static void tcp_client_err(void *arg, err_t err) {
    MB_SERVER_T *state = (MB_SERVER_T*)arg;
    if (err != ERR_ABRT) {
        DEBUG_printf("tcp_client_err %d\n", err);
    }
    DEBUG_printf("%s:tcp_client_err %d\n", state->server_host_name, err);
}

err_t tcp_client_recv(void *arg, struct tcp_pcb *tpcb, struct pbuf *p, err_t err) {
    MB_SERVER_T *state = (MB_SERVER_T*)arg;
    recv_queue_t *temp_recv;
    if (!p) {
        printf("connect close---------\n");
        tcp_client_close(arg);
        return ERR_CLSD;
    }

    if (p->tot_len > 0) {
        temp_recv = (recv_queue_t*)malloc(sizeof(recv_queue_t));
        //DEBUG_printf("tcp_client_recv %d err %d\n", p->tot_len, err);
        // Receive the buffer
        uint16_t recv_len = pbuf_copy_partial(p, temp_recv->buffer, p->tot_len, 0);
        temp_recv->buffer_len = recv_len;
        queue_add_blocking(&state->recv_queue, temp_recv);
        tcp_recved(tpcb, recv_len);
/*
        //Debug
        printf("---------recv---------\n");
        for (int i =0; i < recv_len; i++) {
            printf("%02x ",temp_recv.buffer[i]);
        }
        printf("\n-------------\n");
*/
    } else printf("total len =0");
    pbuf_free(p);

    return ERR_OK;
}

static bool tcp_client_open(void *arg) {
    MB_SERVER_T *state = (MB_SERVER_T*)arg;
    state->connected = false;
    state->dns_found = false;
    dns_init();

    cyw43_arch_lwip_begin();
    err_t err = dns_gethostbyname(state->server_host_name, &(state->remote_addr), local_server_dns_found, state);
    cyw43_arch_lwip_end();


    absolute_time_t timeout = get_absolute_time();
    while (!state->dns_found && absolute_time_diff_us(timeout, get_absolute_time()) < 2000000) {
        //cyw43_arch_poll();
        sleep_ms(100);
    }
    if (!state->dns_found) return false;


    DEBUG_printf("Connecting to %s port %u\n", ip4addr_ntoa(&state->remote_addr), MODBUS_TCP_PORT);
    lv_label_set_text_fmt(msg_label, "Connecting to %s port %u\n", ip4addr_ntoa(&state->remote_addr), MODBUS_TCP_PORT);
    lv_timer_handler();
    state->tcp_pcb = tcp_new_ip_type(IP_GET_TYPE(&state->remote_addr));
    if (!state->tcp_pcb) {
        DEBUG_printf("failed to create pcb\n");
        lv_label_set_text(msg_label,"Failed to create pcb");
        lv_timer_handler();
        return false;
    }

    tcp_arg(state->tcp_pcb, state);
    tcp_poll(state->tcp_pcb, tcp_client_poll, POLL_TIME_S * 2);
    tcp_sent(state->tcp_pcb, tcp_client_sent);
    tcp_recv(state->tcp_pcb, tcp_client_recv);
    tcp_err(state->tcp_pcb, tcp_client_err);

    cyw43_arch_lwip_begin();

    err = tcp_connect(state->tcp_pcb, &state->remote_addr, MODBUS_TCP_PORT, tcp_client_connected);
    cyw43_arch_lwip_end();
    lv_label_set_text(msg_label, "");
    lv_timer_handler();
    return err == err;
}

bool modbus_tcp_client_init(MB_SERVER_T* mb_server) {
    queue_init(&mb_server->recv_queue, sizeof(recv_queue_t), 4);

    if (!tcp_client_open(mb_server)) {

        //return false;

    }
    return true;
}

// Perform initialisation
bool picow_tcp_client_init() {

    cyw43_arch_enable_sta_mode();

    printf("Connecting to Wi-Fi...\n");
    lv_label_set_text(msg_label,"Connecting to Wi-Fi...");
    lv_timer_handler();
    if (cyw43_arch_wifi_connect_timeout_ms(WIFI_SSID, WIFI_PASSWD, CYW43_AUTH_WPA2_AES_PSK, 30000)) {
        printf("failed to connect.\n");
        return false;
    } else {
        printf("Connected.\n");
    }
//============
    modbus_sw_server = calloc(1, sizeof(MB_SERVER_T));
    if (!modbus_sw_server) {
        lv_label_set_text(msg_label,"failed to allocate state");
        lv_timer_handler();
        DEBUG_printf("failed to allocate state\n");
        return false;
    }
    modbus_sw_server->queue_left=0;
    modbus_sw_server->start_index=0;
    modbus_sw_server->recv_count=0;
    strcpy(modbus_sw_server->server_host_name, "picow_mb_leds.local");
    if (!modbus_tcp_client_init(modbus_sw_server)) {
        printf("modbus Switches server init failuer!\n");
        lv_label_set_text(msg_label,"modbus Switches server init failuer!");
        return false;
    }
//===========
    modbus_ht_server = calloc(1, sizeof(MB_SERVER_T));
    if (!modbus_ht_server) {
        lv_label_set_text(msg_label,"failed to allocate state");
        lv_timer_handler();
        DEBUG_printf("failed to allocate state\n");
        return false;
    }
    modbus_ht_server->queue_left=0;
    modbus_ht_server->start_index=0;
    modbus_ht_server->recv_count=0;
    strcpy(modbus_ht_server->server_host_name, "picow_mb_ht.local");
    if (!modbus_tcp_client_init(modbus_ht_server)) {
        printf("modbus Humi-Temp server init failuer!\n");
        lv_label_set_text(msg_label,"modbus Humi-Temp server init failuer!");
        return false;
    }

    lv_label_set_text(msg_label,"");
    lv_timer_handler();
    return true;
}

err_t picow_tcp_client_close(void *arg) {
    return tcp_client_close(arg);
}
bool picow_tcp_client_open(void *arg) {
    return tcp_client_open(arg);
}

• picow_tcp_client.h


#ifndef __PICOW_TCP_CLIENT__
#define __PCIOW_TCP_CLIENT__

#include "lwip/tcp.h"
#include "pico/util/queue.h"
typedef struct __recv_queue_t{
    uint8_t buffer[260];
    uint16_t buffer_len;
} recv_queue_t;

typedef struct TCP_CLIENT_T_ {
    struct tcp_pcb *tcp_pcb;
    ip_addr_t remote_addr;
    bool connected;
    bool dns_found;
    queue_t recv_queue;
    uint8_t server_host_name[256];
    uint16_t recv_count;
    uint16_t start_index;
    uint16_t queue_left;
    recv_queue_t temp_recv;
} MB_SERVER_T;

bool picow_tcp_client_init();
err_t picow_tcp_client_close(void *arg);
bool picow_tcp_client_open(void *arg);

#endif
