[Raspberry Pi Pico W] 7-segment ws2812 LED digital clock | Lwip httpd, mdns, sntp application

 本文章介紹使用ws2812製作一個大型的7段顯示器的數位時鐘。

使用Raspberry Pi Pico W微處理器開發板。

使用Lwip httpd, mdns與sntp application。

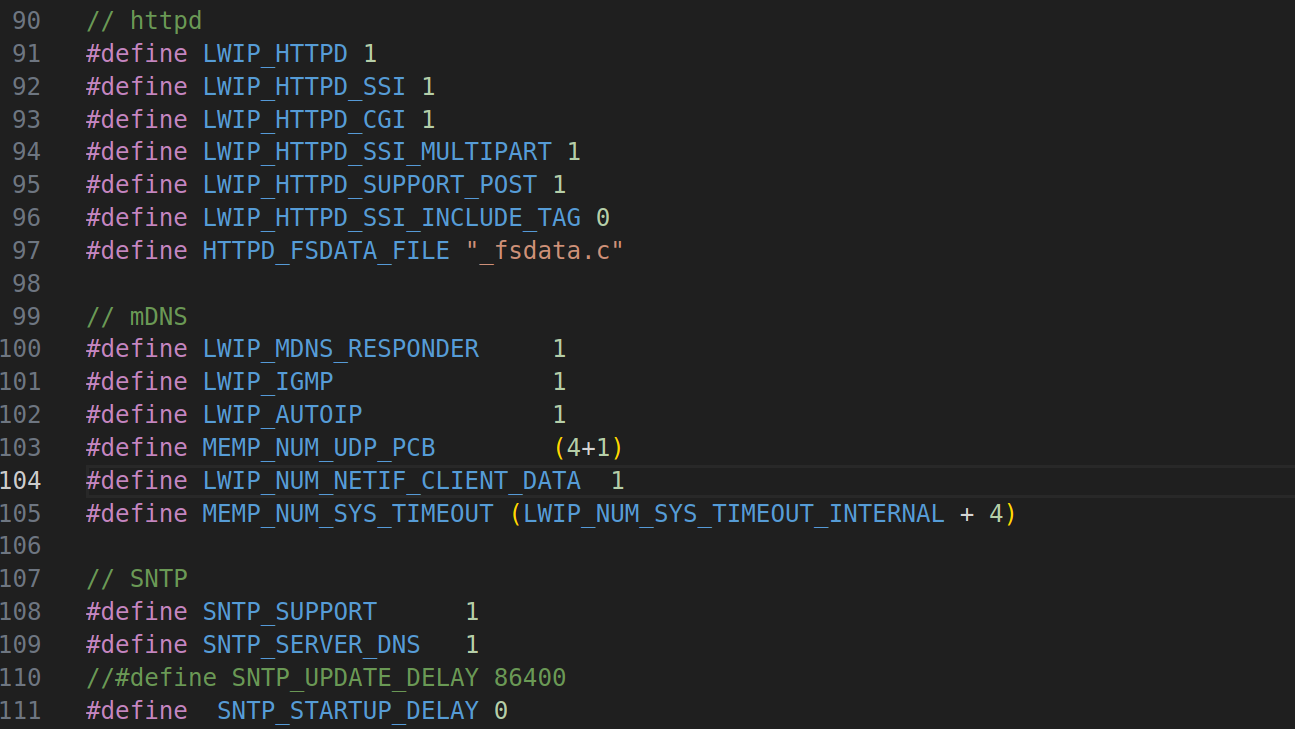

• lwipopts.h依照使用的lwip application需要增加的設定值：
• Lwip httpd:
  網頁檔案儲存在Flash中，因此需要將檔案編譯成程式碼的一部分，使用makefsdata perl程式將網頁檔編譯成_fsdata.c。makefsdata程式碼參閱路徑:pico-sdk/lib/lwip/src/apps/http/makefsdata。
• Lwip mdns:
  將網站網址定義成picow_led_clock.local，方便存取網站。MEMP_NUM_SYS_TIMEOUT需要依據使用services的數量增加。

• Lwip sntp:

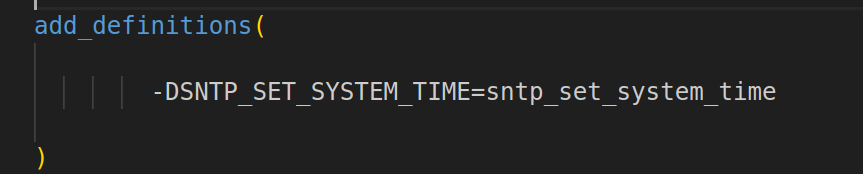

  使用Lwip sntp取得NTP時間，定期更新微處理器系統時間。自訂的更新系統時間函式定義在








• 系統組態設定值儲存在Flash最後3個4k位置：



• WiFi manager:


  [Raspberry Pi Pico W (c-sdk)] lwIP: Ep 5. HTTP Server & WiFiManager

成果展示：



程式碼：

CMakeLists.txt:

# perl makefsdata
find_package(Perl)
if(NOT PERL_FOUND)
    message(FATAL_ERROR "Perl is needed for generating the fsdata.c file")
endif()

set(MAKE_FS_DATA_SCRIPT ${CMAKE_CURRENT_LIST_DIR}/mkfsdata/makefsdata)

if (EXISTS ${MAKE_FS_DATA_SCRIPT})
    message("Find makefsdata script")
    message("Running makefsdata script")
      execute_process(COMMAND
          perl ${MAKE_FS_DATA_SCRIPT}
          WORKING_DIRECTORY ${CMAKE_CURRENT_LIST_DIR}
          ECHO_OUTPUT_VARIABLE
          ECHO_ERROR_VARIABLE
        )
    file(RENAME fsdata.c _fsdata.c)
endif()


# Generated Cmake Pico project file

cmake_minimum_required(VERSION 3.13)

set(CMAKE_C_STANDARD 11)
set(CMAKE_CXX_STANDARD 17)

# Initialise pico_sdk from installed location
# (note this can come from environment, CMake cache etc)
set(PICO_SDK_PATH "/home/duser/pico/pico-sdk")

set(PICO_BOARD pico_w CACHE STRING "Board type")

# Pull in Raspberry Pi Pico SDK (must be before project)
include(pico_sdk_import.cmake)

if (PICO_SDK_VERSION_STRING VERSION_LESS "1.4.0")
  message(FATAL_ERROR "Raspberry Pi Pico SDK version 1.4.0 (or later) required. Your version is ${PICO_SDK_VERSION_STRING}")
endif()

project(picow_ws2812_clock C CXX ASM)

# Initialise the Raspberry Pi Pico SDK
pico_sdk_init()

add_definitions(

        -DSNTP_SET_SYSTEM_TIME=sntp_set_system_time

)
# Add executable. Default name is the project name, version 0.1

add_executable(picow_ws2812_clock
      picow_ws2812_clock.c
      wifi_scan/wifi_scan.c
      ap_http_server/ap_http_server.c
      cJSON/cJSON.c
      dhcpserver/dhcpserver.c)

pico_set_program_name(picow_ws2812_clock "picow_ws2812_clock")
pico_set_program_version(picow_ws2812_clock "0.1")

pico_enable_stdio_uart(picow_ws2812_clock 1)
pico_enable_stdio_usb(picow_ws2812_clock 0)

# Add the standard library to the build
target_link_libraries(picow_ws2812_clock
        pico_stdlib)

# Add the standard include files to the build
target_include_directories(picow_ws2812_clock PRIVATE
  ${CMAKE_CURRENT_LIST_DIR}
  ${CMAKE_CURRENT_LIST_DIR}/.. # for our common lwipopts or any other standard includes, if required
  ${CMAKE_CURRENT_LIST_DIR}/dhcpserver
  ${CMAKE_CURRENT_LIST_DIR}/cJSON
  ${CMAKE_CURRENT_LIST_DIR}/ap_http_server
  ${CMAKE_CURRENT_LIST_DIR}/wifi_scan
  )

# Add any user requested libraries
target_link_libraries(picow_ws2812_clock
        hardware_pio
        hardware_timer
        hardware_clocks
        pico_cyw43_arch_lwip_poll
        pico_lwip_http
        pico_lwip_mdns
        pico_lwip_sntp
        hardware_flash
        hardware_watchdog
        hardware_rtc
        )

add_subdirectory(ws2812)
target_link_libraries(picow_ws2812_clock
      ws2812
)

pico_add_extra_outputs(picow_ws2812_clock)




lwipopts.h:

#ifndef __LWIPOPTS_H__
#define __LWIPOPTS_H__

// Common settings used in most of the pico_w examples
// (see https://www.nongnu.org/lwip/2_1_x/group__lwip__opts.html for details)

// allow override in some examples
#ifndef NO_SYS
#define NO_SYS                      1
#endif
// allow override in some examples
#ifndef LWIP_SOCKET
#define LWIP_SOCKET                 0
#endif
#if PICO_CYW43_ARCH_POLL
#define MEM_LIBC_MALLOC             1
#else
// MEM_LIBC_MALLOC is incompatible with non polling versions
#define MEM_LIBC_MALLOC             0
#endif
#define MEM_ALIGNMENT               4
#define MEM_SIZE                    4000
#define MEMP_NUM_TCP_SEG            32
#define MEMP_NUM_ARP_QUEUE          10
#define PBUF_POOL_SIZE              24
#define LWIP_ARP                    1
#define LWIP_ETHERNET               1
#define LWIP_ICMP                   1
#define LWIP_RAW                    1
#define TCP_WND                     (8 * TCP_MSS)
#define TCP_MSS                     1460
#define TCP_SND_BUF                 (8 * TCP_MSS)
#define TCP_SND_QUEUELEN            ((4 * (TCP_SND_BUF) + (TCP_MSS - 1)) / (TCP_MSS))
#define LWIP_NETIF_STATUS_CALLBACK  1
#define LWIP_NETIF_LINK_CALLBACK    1
#define LWIP_NETIF_HOSTNAME         1
#define LWIP_NETCONN                0
#define MEM_STATS                   0
#define SYS_STATS                   0
#define MEMP_STATS                  0
#define LINK_STATS                  0
// #define ETH_PAD_SIZE                2
#define LWIP_CHKSUM_ALGORITHM       3
#define LWIP_DHCP                   1
#define LWIP_IPV4                   1
#define LWIP_TCP                    1
#define LWIP_UDP                    1
#define LWIP_DNS                    1
#define LWIP_TCP_KEEPALIVE          1
#define LWIP_NETIF_TX_SINGLE_PBUF   1
#define DHCP_DOES_ARP_CHECK         0
#define LWIP_DHCP_DOES_ACD_CHECK    0

#ifndef NDEBUG
#define LWIP_DEBUG                  1
#define LWIP_STATS                  1
#define LWIP_STATS_DISPLAY          1
#endif

#define ETHARP_DEBUG                LWIP_DBG_OFF
#define NETIF_DEBUG                 LWIP_DBG_OFF
#define PBUF_DEBUG                  LWIP_DBG_OFF
#define API_LIB_DEBUG               LWIP_DBG_OFF
#define API_MSG_DEBUG               LWIP_DBG_OFF
#define SOCKETS_DEBUG               LWIP_DBG_OFF
#define ICMP_DEBUG                  LWIP_DBG_OFF
#define INET_DEBUG                  LWIP_DBG_OFF
#define IP_DEBUG                    LWIP_DBG_OFF
#define IP_REASS_DEBUG              LWIP_DBG_OFF
#define RAW_DEBUG                   LWIP_DBG_OFF
#define MEM_DEBUG                   LWIP_DBG_OFF
#define MEMP_DEBUG                  LWIP_DBG_OFF
#define SYS_DEBUG                   LWIP_DBG_OFF
#define TCP_DEBUG                   LWIP_DBG_OFF
#define TCP_INPUT_DEBUG             LWIP_DBG_OFF
#define TCP_OUTPUT_DEBUG            LWIP_DBG_OFF
#define TCP_RTO_DEBUG               LWIP_DBG_OFF
#define TCP_CWND_DEBUG              LWIP_DBG_OFF
#define TCP_WND_DEBUG               LWIP_DBG_OFF
#define TCP_FR_DEBUG                LWIP_DBG_OFF
#define TCP_QLEN_DEBUG              LWIP_DBG_OFF
#define TCP_RST_DEBUG               LWIP_DBG_OFF
#define UDP_DEBUG                   LWIP_DBG_OFF
#define TCPIP_DEBUG                 LWIP_DBG_OFF
#define PPP_DEBUG                   LWIP_DBG_OFF
#define SLIP_DEBUG                  LWIP_DBG_OFF
#define DHCP_DEBUG                  LWIP_DBG_OFF


// httpd
#define LWIP_HTTPD 1
#define LWIP_HTTPD_SSI 1
#define LWIP_HTTPD_CGI 1
#define LWIP_HTTPD_SSI_MULTIPART 1
#define LWIP_HTTPD_SUPPORT_POST 1
#define LWIP_HTTPD_SSI_INCLUDE_TAG 0
#define HTTPD_FSDATA_FILE "_fsdata.c"

// mDNS
#define LWIP_MDNS_RESPONDER     1
#define LWIP_IGMP               1
#define LWIP_AUTOIP             1
#define MEMP_NUM_UDP_PCB        (4+1)
#define LWIP_NUM_NETIF_CLIENT_DATA  1
#define MEMP_NUM_SYS_TIMEOUT (LWIP_NUM_SYS_TIMEOUT_INTERNAL + 4)

// SNTP
#define SNTP_SUPPORT      1
#define SNTP_SERVER_DNS   1
//#define SNTP_UPDATE_DELAY 86400
#define  SNTP_STARTUP_DELAY 0

#endif /* __LWIPOPTS_H__ */



picow_ws2812_clock.c:

#include <stdio.h>
#include "pico/stdlib.h"
#include "hardware/pio.h"
#include "hardware/timer.h"
#include "hardware/clocks.h"
#include "pico/cyw43_arch.h"
#include "ws2812.h"
#include "hardware/rtc.h"
// Lwip application: httpd, mdns and sntp
#include "lwip/apps/httpd.h"
#include "lwip/apps/mdns.h"
#include "lwip/apps/sntp.h"

#include "ap_http_server.h"
#include "cJSON.h"

#include "picow_ws2812_clock.h"

// 7-segment digit
uint8_t digit[10][7] = {
    {1,1,1,1,1,1,0}, //0
    {1,0,0,0,0,1,0}, //1
    {0,1,1,0,1,1,1}, //2
    {1,1,0,0,1,1,1}, //3
    {1,0,0,1,0,1,1}, //4
    {1,1,0,1,1,0,1}, //5
    {1,1,1,1,1,0,1}, //6
    {1,0,0,0,1,1,0}, //7
    {1,1,1,1,1,1,1}, //8
    {1,0,0,1,1,1,1}, //9
};

PIO pio = pio0;
uint8_t sm_digit=0;
uint8_t sm_colon=1;

uint32_t status_colon[4] = {0x00ff00, 0x0000ff, 0xffffff,POWER_SAVE_COLOR};
struct clock_config_t  clock_config;

uint8_t pre_min=0;

bool connect_to_wifi_ssid() {
    if (!clock_config.flash_data) return false;

    cyw43_arch_enable_sta_mode();
    printf("\n\n==========================\n"
        "Connecting to WiFi:%s\n"
            "==============================\n", clock_config.ssid);
    if (cyw43_arch_wifi_connect_timeout_ms(clock_config.ssid, clock_config.pass, CYW43_AUTH_WPA2_AES_PSK, 10000)) {
        printf("wifi sta connect error ssid:%s\n", clock_config.ssid);
        //cyw43_arch_deinit();
        return false;
    }

    ip_addr_t addr = cyw43_state.netif->ip_addr;
    printf("connect successfully. get IP: %s\n", ipaddr_ntoa(&addr));
    return true;
}

void display_digit(uint8_t number, uint32_t color) {

    for (int i=0; i < 7; i++) {
        if (digit[number][i] == 1) {
            for (int k=0; k < 3;k++)
                ws2812_put_grb_pixel(pio, sm_digit,color);
        }
        else {
            for (int k=0; k < 3;k++)
                ws2812_put_grb_pixel(pio, sm_digit,0x000000);
        }
    }
}

void set_led_clock_color() {
    uint32_t color;
    sscanf(clock_config.led_color, "#%x", &color);

    clock_config.display_color = (color&0xff0000) >> 8 | (color&0x00ff00) << 8 | color&0x0000ff;
    printf("color:%x, %s\n", color,clock_config.led_color);
}

void display_clock_digits(bool force) {
    datetime_t date_time;
    uint8_t h1, h0, min1, min0, h,min;
    if (rtc_get_datetime(&date_time)) {
        if (date_time.sec == 0 || pre_min != date_time.min || force) {
            pre_min = date_time.min;
        } else {
            return ;
        }
        min = date_time.min;
        h = date_time.hour;
        min0 = min%10;
        min1 = min/10;
        h0 = h %10;
        h1 = h/10;

        display_digit(min0, clock_config.display_color);
        display_digit(min1, clock_config.display_color);
        display_digit(h0, clock_config.display_color);
        display_digit(h1, clock_config.display_color);
    }

}

bool timer_callback(repeating_timer_t* rt) {
    display_clock_digits(false);
    return true;
}

bool colon_timer_callback(repeating_timer_t* rt) {
    static uint8_t s=0;
    if (!s) {
        for (int i=0; i <2; i++)
            ws2812_put_grb_pixel(pio, sm_colon, status_colon[clock_config.colon_state]);
    }
    else {
        for (int i=0; i <2; i++)
            ws2812_put_grb_pixel(pio, sm_colon, 0x000000);
    }
    s =(s+1)%2;
    return true;
}

#if LWIP_MDNS_RESPONDER
static void srv_txt(struct mdns_service *service, void *txt_userdata)
{
  err_t res;
  LWIP_UNUSED_ARG(txt_userdata);

  res = mdns_resp_add_service_txtitem(service, "path=/", 6);
  LWIP_ERROR("mdns add service txt failed\n", (res == ERR_OK), return);
}

static void mdns_example_report(struct netif* netif, u8_t result, s8_t service)
{
  LWIP_PLATFORM_DIAG(("mdns status[netif %d][service %d]: %d\n", netif->num, service, result));
}
#endif


//SNTP
void sntp_set_system_time(uint32_t sec, uint32_t us)
{
    char buf[32];
    struct tm current_time_val;

    time_t current_time = (sec+atoi(clock_config.timezone)*60*60);
    struct tm* p= gmtime(&current_time);

    datetime_t rtc_time;
    rtc_time.year = p->tm_year+1900;
    rtc_time.month = p->tm_mon+1;
    rtc_time.day = p->tm_mday;
    rtc_time.hour = p->tm_hour;
    rtc_time.min = p->tm_min;
    rtc_time.sec = p->tm_sec;
    rtc_time.dotw = p->tm_wday;

    rtc_set_datetime(&rtc_time);

}

int main()
{
    stdio_init_all();

    if (cyw43_arch_init()) {
        printf("failed to initialise\n");
        return 1;
    }

    // pio state machine 0 for ws2812 digit, 1 for colom
    ws2812_init(pio, sm_digit, 16); //GPIO pin 16
    ws2812_init(pio, sm_colon, 17); //GPIO pin 17

    // rtc initialize value
    rtc_init();
    datetime_t rtc_time;

    rtc_time.year=2024;
    rtc_time.month= 1;
    rtc_time.day = 1;
    rtc_time.hour = 1;
    rtc_time.min = 1;
    rtc_time.sec = 1;
    rtc_time.dotw=1;

    rtc_set_datetime(&rtc_time);
    clock_config.colon_state=SNTP_ERROR;

    // initialize clock configuration.
    if (!read_config_from_flash()) {
        strcpy(clock_config.ssid,"");   //default values if can not read from flash.
        strcpy(clock_config.pass,"");;
        strcpy(clock_config.led_color, "#1f1f1f");
        strcpy(clock_config.ntp_server, "pool.ntp.org");
        strcpy(clock_config.ntp_interval,"3");
        strcpy(clock_config.timezone,"+0");
        clock_config.flash_data=0;
    } else {
        clock_config.flash_data=1;
    }

    set_led_clock_color();

    repeating_timer_t rt, rt1;
    add_repeating_timer_ms(-1000, timer_callback, NULL, &rt);  // for 7-segment timer
    add_repeating_timer_ms(-500, colon_timer_callback, NULL, &rt1);

    if (!connect_to_wifi_ssid()) {
        clock_config.wifi_connected=0;  // change to AP mode if not connect to WIFI lan
        ap_http_server_start();
        clock_config.colon_state=WIFI_NOT_CONNECT;
    } else {
        clock_config.wifi_connected=1;
        http_server_start();
        clock_config.colon_state=WIFI_OK;
    }

    // mDNS: picow_led_clock.local
#if LWIP_MDNS_RESPONDER
    mdns_resp_register_name_result_cb(mdns_example_report);
    mdns_resp_init();
    if (mdns_resp_add_netif(netif_default, "picow_led_clock")== ERR_OK) {
        printf("mDNS add successfully\n");
    } else {
        printf("mDNS failure\n");
    }
    mdns_resp_add_service(netif_default, "myweb", "_http", DNSSD_PROTO_TCP, 80, srv_txt, NULL);
    mdns_resp_announce(netif_default);
#endif

// enable SNTP
    sntp_setoperatingmode(SNTP_OPMODE_POLL);
    sntp_setservername(0, clock_config.ntp_server);
    sntp_init();
    if (!sntp_enabled()) {
        clock_config.colon_state=SNTP_ERROR;
        printf("sntp not enable\n");
    }

   clock_config.prev_colon_state = clock_config.colon_state;
    while (1) {
        cyw43_arch_poll();
        sleep_ms(1);

    }


    return 0;
}



picow_ws2812_clock.h:

#ifndef __PICOW_WS2812_CLOCK_H_
#define __PROJ__PICOW_WS2812_CLOCK_H_ECT_H_


#define POWER_SAVE_COLOR (0x050505)
/* colon color indicator
    red: wifi not connected to lan
    blue: sntp not enabled
    white : correct;
*/
enum {
    WIFI_NOT_CONNECT=0,
    SNTP_ERROR=1,
    WIFI_OK=2,
    POWER_SAVE=3,
};

struct clock_config_t {
  char ssid[50];
  char pass[50];
  char led_color[10]; //0x000000
  char ntp_server[100];
  char ntp_interval[3]; //3~12
  char timezone[4]; // -12~+14
  uint8_t wifi_connected;
  uint8_t flash_data; //init
  uint32_t display_color;
  uint8_t colon_state;
  uint8_t prev_colon_state;
};

#endif



ap_http_server.c:

#include <stdio.h>
#include "pico/stdlib.h"
#include "pico/cyw43_arch.h"
#include "lwip/apps/httpd.h"
#include "hardware/flash.h"
#include "hardware/sync.h"
#include "hardware/watchdog.h"

#include "hardware/rtc.h"
#include "lwip/apps/sntp.h"

#include "ap_http_server.h"
#include "wifi_scan.h"
#include "dhcpserver.h"
#include "cJSON.h"

#include "picow_ws2812_clock.h"

enum {
    LED_COLOR_PAGE=1,
    NTP_SERVER_PAGE,
    LOCAL_TIME_PAGE,
    WIFI_CONN_PAGE,
} POST_PAGE;


//struct HTTP_POST_SERVER_T
typedef struct HTTP_POST_SERVER_T_ {
    void *current_connection;
    //void *valid_connection;
    char ssid[WIFI_PASS_BUFSIZE];
    char pass[WIFI_PASS_BUFSIZE];
    bool post_recv;
    uint8_t post_page;
 } HTTP_POST_SERVER_T;

HTTP_POST_SERVER_T *server=NULL;
// struct HTTP_POST_SERVER_T

SCAN_APS_T *aps;

dhcp_server_t dhcp_server;
#define WIFI_AP_SSID "PicoW"
#define WIFI_AP_PASSWORD "ap_password"

struct clock_config_t clock_config;

char* urldecode(char* str) {
  char tmpstr[WIFI_PASS_BUFSIZE];
  int j=0;
  int i=0;
  char tmpval[5];
  while(i < strlen(str)) {
    if (str[i] == '%') {
        sprintf(tmpval, "%s%c%c", "0x",str[i+1], str[i+2]);
        tmpstr[j] = strtol(tmpval, NULL, 16);
        i+=3;
    } else {
      tmpstr[j]=str[i];
      i++;
    }
    j++;
  }
  tmpstr[j]='\0';
  strcpy(str, tmpstr);
  return str;
}

bool read_config_from_flash() {
    char flash_buff[256*FLASH_STORAGE_PAGES];
    memset(flash_buff,0,256*FLASH_STORAGE_PAGES);
    snprintf(flash_buff, 256*FLASH_STORAGE_PAGES, "%s",(uint8_t*)(XIP_BASE+FLASH_OFFSET));
    if (!flash_buff) return false;

    printf("ff:%s\n", flash_buff);
    cJSON *config_flash = cJSON_CreateObject();
    config_flash = cJSON_Parse(flash_buff);

    if (config_flash) {
        strcpy(clock_config.ssid, cJSON_GetStringValue(cJSON_GetObjectItem(config_flash, "ssid")));
        strcpy(clock_config.pass, cJSON_GetStringValue(cJSON_GetObjectItem(config_flash, "pass")));
        strcpy(clock_config.led_color, cJSON_GetStringValue(cJSON_GetObjectItem(config_flash, "ledcolor")));
        strcpy(clock_config.ntp_server, cJSON_GetStringValue(cJSON_GetObjectItem(config_flash, "ntpserver")));
        strcpy(clock_config.ntp_interval, cJSON_GetStringValue(cJSON_GetObjectItem(config_flash, "ntpinterval")));
        strcpy(clock_config.timezone, cJSON_GetStringValue(cJSON_GetObjectItem(config_flash, "timezone")));
    } else {
        return false;
    }
    cJSON_Delete(config_flash);

    printf("read configuration from flash oK\n");
    return true;
}

void save_to_flash(bool reboot) {
  char flash_buff[256*FLASH_STORAGE_PAGES];

  memset(flash_buff, 0, 256*FLASH_STORAGE_PAGES);
  sprintf(flash_buff, "{\"ssid\":\"%s\",\"pass\":\"%s\", \"ledcolor\":\"%s\", \"ntpserver\":\"%s\", \"ntpinterval\":\"%s\", \"timezone\":\"%s\"}",
      clock_config.ssid, clock_config.pass, clock_config.led_color, clock_config.ntp_server, clock_config.ntp_interval, clock_config.timezone);

  uint32_t ints = save_and_disable_interrupts();
  flash_range_erase(FLASH_OFFSET, 4096); // one sector
  flash_range_program(FLASH_OFFSET, flash_buff, 256*FLASH_STORAGE_PAGES);
  restore_interrupts(ints);

  if (reboot)
    watchdog_enable(5000, false); // after save data to flash, reboot in 5 seconds
}

// set_led_clock_color() and display_clock_digits() define at picow_ws2812_clock.c
extern void set_led_clock_color();
extern void display_clock_digits(bool force);

/* ==== cgi begin ======*/
const char *
cgi_handler_wifi_refresh(int iIndex, int iNumParams, char *pcParam[], char *pcValue[]) {

    scan_aps(aps, 20000);
    return "/select_wifi.shtml";  //return to index.shtml

}

const char *
cgi_handler_led_color(int iIndex, int iNumParams, char *pcParam[], char *pcValue[]) {
    printf("led_cgi\n");

    for (int i = 0; i < iNumParams; i++) {
      if (strcmp(pcParam[i], "psave") == 0) {
          if (strcmp(pcValue[i], "on") == 0) {

            clock_config.display_color = POWER_SAVE_COLOR;
            clock_config.prev_colon_state=clock_config.colon_state;
            clock_config.colon_state=POWER_SAVE; //POWER_SAVE
          } else {
            set_led_clock_color();
            clock_config.colon_state=clock_config.prev_colon_state;
          }
          display_clock_digits(true);
      }
    }
    return "/index.shtml";  //return to index.shtml

}

const char *
cgi_handler_set_local_time(int iIndex, int iNumParams, char *pcParam[], char *pcValue[]) {

      printf("local time\n");

    return "/index.shtml";  //return to index.shtml

}

const char *
cgi_handler_ntp_server(int iIndex, int iNumParams, char *pcParam[], char *pcValue[]) {

      printf("ntp_server\n");
      return "/index.shtml";  //return to index.shtml
}

static const tCGI cgi_handlers[] = {
    {
        //* Html request for "/wifi_refresh.cgi" will start cgi_handler_wifi_refresh
        "/wifi_refresh.cgi", cgi_handler_wifi_refresh
    },
    {
        "/led_color.cgi", cgi_handler_led_color
    },
    {
        "/set_local_time.cgi", cgi_handler_set_local_time
    },
    {
        "/ntp_server.cgi", cgi_handler_ntp_server
    },
};
/* ==== cgi end ======*/

/*===== post begin =====*/
err_t httpd_post_begin(void *connection, const char *uri, const char *http_request,
                 u16_t http_request_len, int content_len, char *response_uri,
                 u16_t response_uri_len, u8_t *post_auto_wnd)  {
  LWIP_UNUSED_ARG(connection);
  LWIP_UNUSED_ARG(http_request);
  LWIP_UNUSED_ARG(http_request_len);
  LWIP_UNUSED_ARG(content_len);
  LWIP_UNUSED_ARG(post_auto_wnd);
  server->post_recv=false;

  server->post_page=0;
  if (!memcmp(uri, "/wifi_conn.shtml", 17)) {
    server->post_page = WIFI_CONN_PAGE;
  }
  if (!memcmp(uri, "/led_color.cgi", 15)) {
    server->post_page = LED_COLOR_PAGE;
  }
  if (!memcmp(uri, "/ntp_server.cgi", 16)) {
    server->post_page = NTP_SERVER_PAGE;
  }
  if (!memcmp(uri, "/set_local_time.cgi", 20)) {
    server->post_page = LOCAL_TIME_PAGE;
  }

  if (server->post_page) {
    if (server->current_connection != connection) {
      server->current_connection = connection;
      snprintf(response_uri, response_uri_len, "/index.shtml"); // default : return main page
      *post_auto_wnd = 1;
      return ERR_OK;
    }

  }
  return ERR_VAL;
}

bool get_post_data_param(struct pbuf *p, char* param_name, char* param_value) {
    u16_t token, value_offset, len;
    char param_name_eq[100];
    sprintf(param_name_eq, "%s=", param_name);
    token = pbuf_memfind(p, param_name_eq, strlen(param_name_eq), 0);

    if ((token != 0xFFFF)) {
      u16_t value_offset = token + strlen(param_name_eq);
      u16_t len = 0;
      u16_t tmp;

      /* find  len */
      tmp = pbuf_memfind(p, "&", 1, value_offset);
      if (tmp != 0xFFFF) {
        len = tmp - value_offset;
      } else {
        len = p->tot_len - value_offset;
      }

      if ((len > 0)) {
        char* tmpstr= (char*)pbuf_get_contiguous(p, &param_name_eq, sizeof(param_name_eq), len, value_offset);
        tmpstr[len]=0;
        strcpy(param_value, urldecode(tmpstr));
      } else {
        return false;
      }
    } else {
      return false;
    }
    return true;
}

err_t httpd_post_receive_data(void *connection, struct pbuf *p) {
  err_t ret;

  LWIP_ASSERT("NULL pbuf", p != NULL);
  if (server->current_connection == connection) {
      if (server->post_page ==  WIFI_CONN_PAGE){
        if (get_post_data_param(p, "ssid", server->ssid) &&
                    get_post_data_param(p, "pass", server->pass)) {
            strcpy(clock_config.ssid, server->ssid);
            strcpy(clock_config.pass, server->pass);
            server->post_recv=true;
        }

        }
        //// LED Color
        if (server->post_page ==  LED_COLOR_PAGE){
            if (get_post_data_param(p, "ledcolor", clock_config.led_color)) {
              server->post_recv=true;
            }

        }
        if (server->post_page ==  NTP_SERVER_PAGE) {
            if (get_post_data_param(p, "ntp_server", clock_config.ntp_server) &&
                    get_post_data_param(p, "ntp_interval", clock_config.ntp_interval) &&
                    get_post_data_param(p, "timezone_offset", clock_config.timezone) ) {
                server->post_recv=true;
            }
        }
        if (server->post_page ==  LOCAL_TIME_PAGE){
          char tmpstr[21], buff[21];
          if (get_post_data_param(p, "date_time", tmpstr)) {
              int y,m,d,h,min;
              datetime_t dt;
              strcpy(buff, urldecode(tmpstr));
              sscanf(buff, "%d-%d-%dT%d:%d", &y, &m,&d,&h,&min);
              dt.year=y;
              dt.month=m;
              dt.day=d;
              dt.hour=h;
              dt.min=min;
              dt.dotw=1;
              if (!rtc_set_datetime(&dt)) printf("set local time error\n");
              server->post_recv=true;
          }

        }
        ret = ERR_OK;
      } else {
      ret = ERR_VAL;
  }

  /* this function must ALWAYS free the pbuf it is passed or it will leak memory */
  pbuf_free(p);

  return ret;
}

void httpd_post_finished(void *connection, char *response_uri, u16_t response_uri_len) {
  if (server->current_connection == connection) {
    //if (server->valid_connection == connection) {
        if (server->post_recv) {
           switch (server->post_page) {
            case WIFI_CONN_PAGE:
              save_to_flash(true);
              snprintf(response_uri, response_uri_len, "/wifi_conn.shtml");
            break;
            case NTP_SERVER_PAGE:
                sntp_stop();
                sntp_init();
                display_clock_digits(true);
                save_to_flash(false);
                snprintf(response_uri, response_uri_len, "/index.shtml");
              break;
            case LED_COLOR_PAGE:
                set_led_clock_color();
            case LOCAL_TIME_PAGE:
              display_clock_digits(true);
              save_to_flash(false);
              snprintf(response_uri, response_uri_len, "/index.shtml");
            break;
           }

        }
    //}
    server->current_connection = NULL;
    //server->valid_connection = NULL;
  }
}
/*===== post end =====*/

/*  === ssi begin =====*/
const char* __not_in_flash("httpd") ssi_tags[] = {
    "scanwifi", //0
    "ssid",     //1
    "ledcolor", //2
    "wifistat", //3
    "ltime",    //4
    "ntpserv",  //5
    "ntpint",   //6
    "timezone", //7
};

/* for scan wifi, multipart: every part for one scaned AP*/
u16_t __time_critical_func(ssi_handler)(int iIndex, char *pcInsert, int iInsertLen, u16_t current_tag_part, u16_t *next_tag_part)
{
    size_t printed;
    static char buff[500];
    char keyimg[]="<img src='img/key.png'>";
    char checked[8]="checked";
    datetime_t dt;
    int rssi=1;
    switch (iIndex) {
        case 0: // for scanwifi in select_wifi.shtml
        if (aps) {
            if (current_tag_part < aps->len) {
                if (((aps->AP)+current_tag_part)->rssi > -90) rssi=2;
                if (((aps->AP)+current_tag_part)->rssi > -80) rssi=3;
                if (((aps->AP)+current_tag_part)->rssi > -70) rssi=4;
                if (((aps->AP)+current_tag_part)->auth_mode == CYW43_AUTH_OPEN) strcpy(keyimg,"");
                if (current_tag_part == 0) strcpy(checked, "checked"); else strcpy(checked, "");
                sprintf(buff, "<tr>"
                "<td>"
                "<input  type='radio' name='ssid' %s value='%s'>%s"
                "</td>"
                "<td>"
                "<img src='img/wifi%d.png'>"
                "</td>"
                "<td>%s</td></tr>",
                checked, ((aps->AP)+current_tag_part)->ssid,((aps->AP)+current_tag_part)->ssid, rssi, keyimg);
                *next_tag_part=current_tag_part+1;
                printed = snprintf(pcInsert, iInsertLen, buff);

            } else {
                printed = snprintf(pcInsert, iInsertLen, "");
            }
        }
        break;
        case 1: // for ssid in wifi_conn.shtml
            printed = snprintf(pcInsert, iInsertLen,server->ssid);
            break;
        case 2: // for led_color
            printed = snprintf(pcInsert, iInsertLen,clock_config.led_color);
            break;
        case 3: // for wifi_state
            if (clock_config.wifi_connected)
              printed = snprintf(pcInsert, iInsertLen,"img/lan_connected.png");
            else
              printed = snprintf(pcInsert, iInsertLen,"img/lan_disconnected.png");

            break;
          case 4: // localtime
              rtc_get_datetime(&dt);
              sprintf(buff, "%04d-%02d-%02dT%02d:%02d", dt.year, dt.month,dt.day, dt.hour, dt.min);
              printf("%s\n", buff);
              printed = snprintf(pcInsert, iInsertLen,buff);

            break;
          case 5: // ntp server
            printed = snprintf(pcInsert, iInsertLen,clock_config.ntp_server);
          break;
          case 6: //ntp interval
            printed = snprintf(pcInsert, iInsertLen,clock_config.ntp_interval);
          break;
          case 7: //timezone
            printed = snprintf(pcInsert, iInsertLen,clock_config.timezone);
          break;
        default:
          printed = snprintf(pcInsert, iInsertLen, "");
    }
    return printed;
}
/*  === ssi end =====*/

void ap_http_server_start() {
     aps = (SCAN_APS_T*)calloc(1, sizeof(SCAN_APS_T));
     if (!aps) {
        printf("cannot alloc scan ap memory\n");
        return;
    }

    server = (HTTP_POST_SERVER_T*) calloc(1, sizeof(HTTP_POST_SERVER_T));
    if (!server) {
        printf("cannot alloc server object\n");
        return;
    }

    printf("Starting AP Mode: local IP:192.168.4.1\n");
    cyw43_arch_enable_ap_mode(WIFI_AP_SSID, WIFI_AP_PASSWORD, CYW43_AUTH_WPA2_AES_PSK);
    /* start dhcp server*/
    ip_addr_t gw, mask;
    IP4_ADDR(ip_2_ip4(&gw), 192, 168, 4, 1);
    IP4_ADDR(ip_2_ip4(&mask), 255, 255, 255, 0);
    dhcp_server_init(&dhcp_server, &gw, &mask);

    scan_aps(aps, 20000);

    //check tag length
    size_t i;
    for (i = 0; i < LWIP_ARRAYSIZE(ssi_tags); i++) {
        LWIP_ASSERT("tag too long for LWIP_HTTPD_MAX_TAG_NAME_LEN",
                    strlen(ssi_tags[i]) <= LWIP_HTTPD_MAX_TAG_NAME_LEN);
    }

    http_set_ssi_handler(ssi_handler, ssi_tags, LWIP_ARRAYSIZE(ssi_tags));
    http_set_cgi_handlers(cgi_handlers, LWIP_ARRAYSIZE(cgi_handlers));

    httpd_init();

}

void ap_http_server_stop() {
    dhcp_server_deinit(&dhcp_server);
    free(aps);
    cyw43_arch_deinit();
}

void http_server_start() {
  aps = (SCAN_APS_T*)calloc(1, sizeof(SCAN_APS_T));
     if (!aps) {
        printf("cannot alloc scan ap memory\n");
        return;
    }

    server = (HTTP_POST_SERVER_T*) calloc(1, sizeof(HTTP_POST_SERVER_T));
    if (!server) {
        printf("cannot alloc server object\n");
        return;
    }

    scan_aps(aps, 20000);
    //check tag length
    size_t i;
    for (i = 0; i < LWIP_ARRAYSIZE(ssi_tags); i++) {
        LWIP_ASSERT("tag too long for LWIP_HTTPD_MAX_TAG_NAME_LEN",
                    strlen(ssi_tags[i]) <= LWIP_HTTPD_MAX_TAG_NAME_LEN);
    }

    http_set_ssi_handler(ssi_handler, ssi_tags, LWIP_ARRAYSIZE(ssi_tags));
    http_set_cgi_handlers(cgi_handlers, LWIP_ARRAYSIZE(cgi_handlers));

    httpd_init();

}




ap_http_server.h:

#ifndef __HTTP_SERVER_H_
#define __HTTP_SERVER_H_

#define FLASH_OFFSET  0x1FD000    //last 3*4k
#define FLASH_STORAGE_PAGES 2

#define WIFI_PASS_BUFSIZE 91
void ap_http_server_start();
void http_server_start();
void ap_http_server_stop();
bool read_config_from_flash();
char* urldecode(char* str);

#endif
